The XR5 MAX PRO

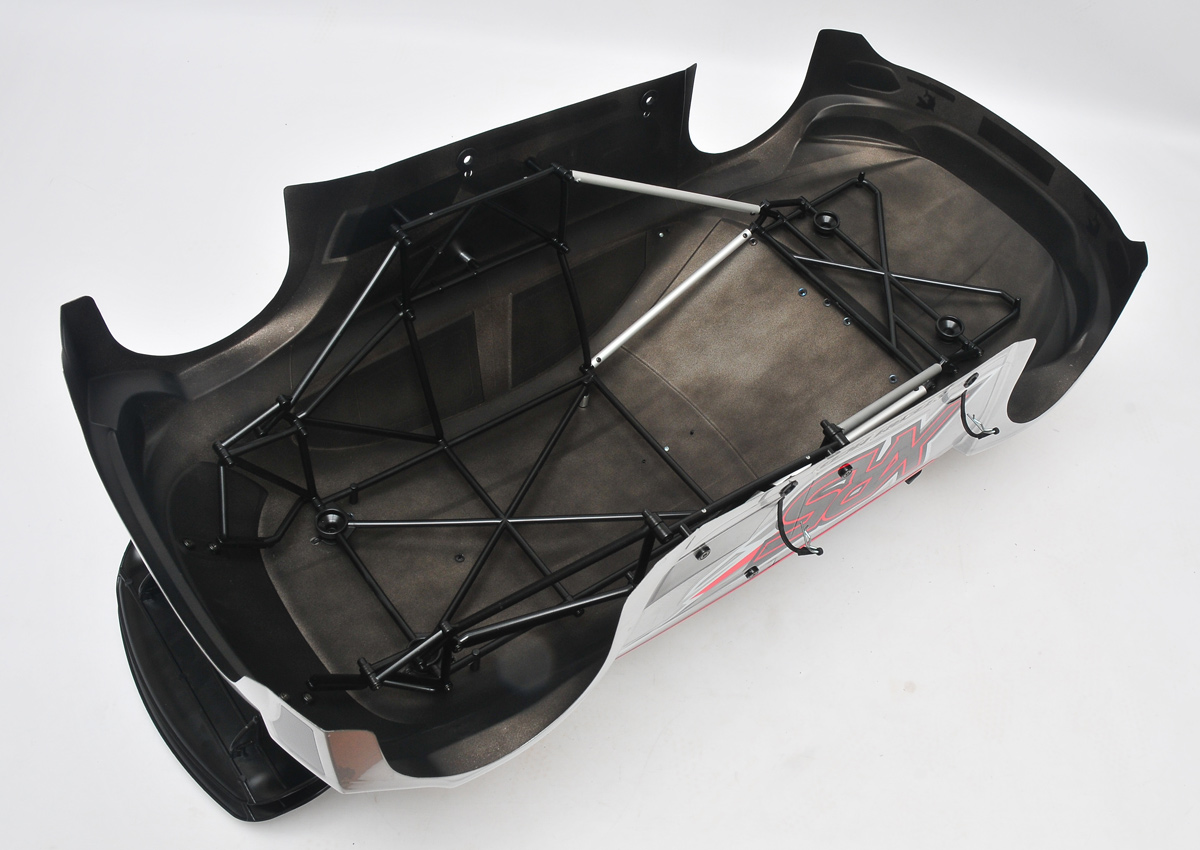

The XR5 MAX is designed to offer a longer wheel-base option to our rallycross enthusiasts. The differences between the existing X5 are the extended wheel base, widened track width, new body-shell, reinforced rear alloy stiffeners, alloy lay-shaft carrier, new alloy shock towers & shock bodies and completely new long chassis.
Order codes: 00525001: XR5 Max Rolling Chassis Pro
Recommended Retail Price: 1,599 EUR
00525201: XR5 Max E-Chassis Pro
Recommended Retail Price: 1,599 EUR
|
 |
 |
- Top of the line competition Rally Cross
- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms
- Sophisticated full-time 4WD Shaft Driven mechanics
- Ultra strengthened chrome drive shaft and axle
- Easy gear mesh system
- Easily removable one-piece electronics tray
- CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis
- Strengthened long wishbones
- Solid and durable aerodynamic side guards
- Easily removable composite front, rear and center diff houses
- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot
- 5mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes

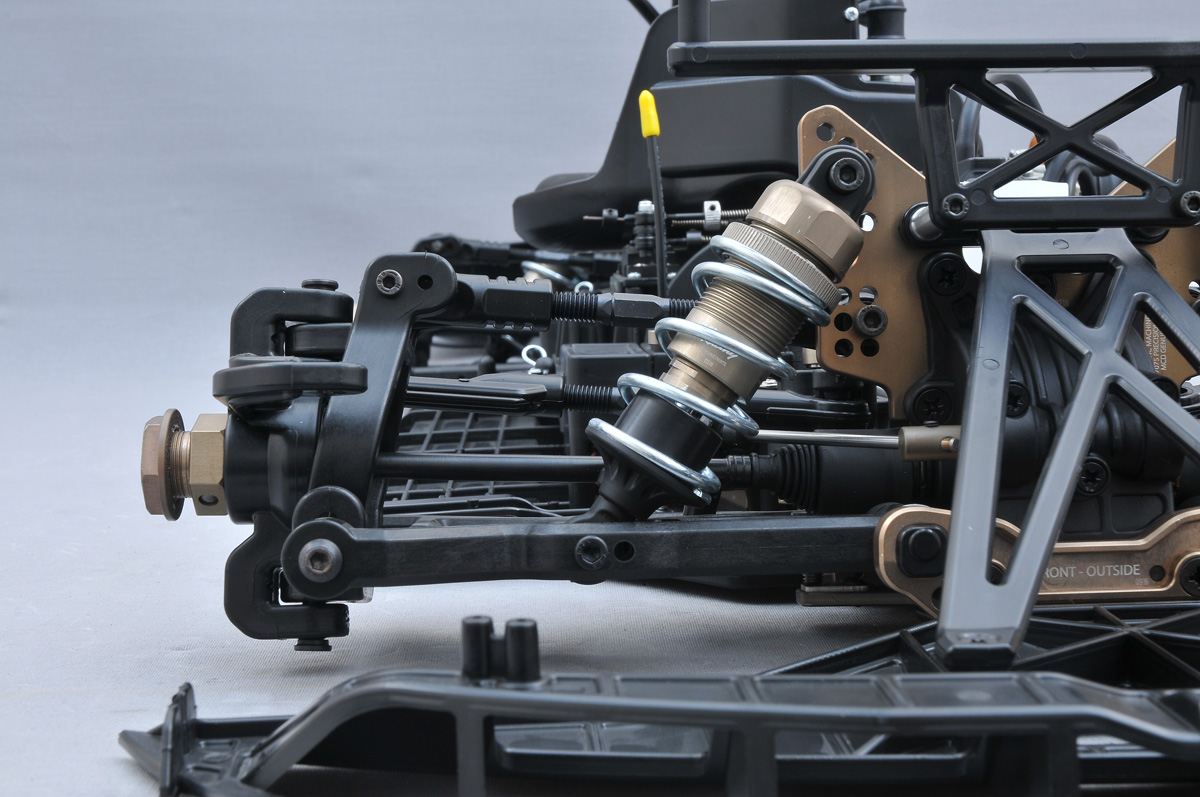

- Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
- Ultra hardened steel transmission gears
- Double ball bearing anti-roll bars

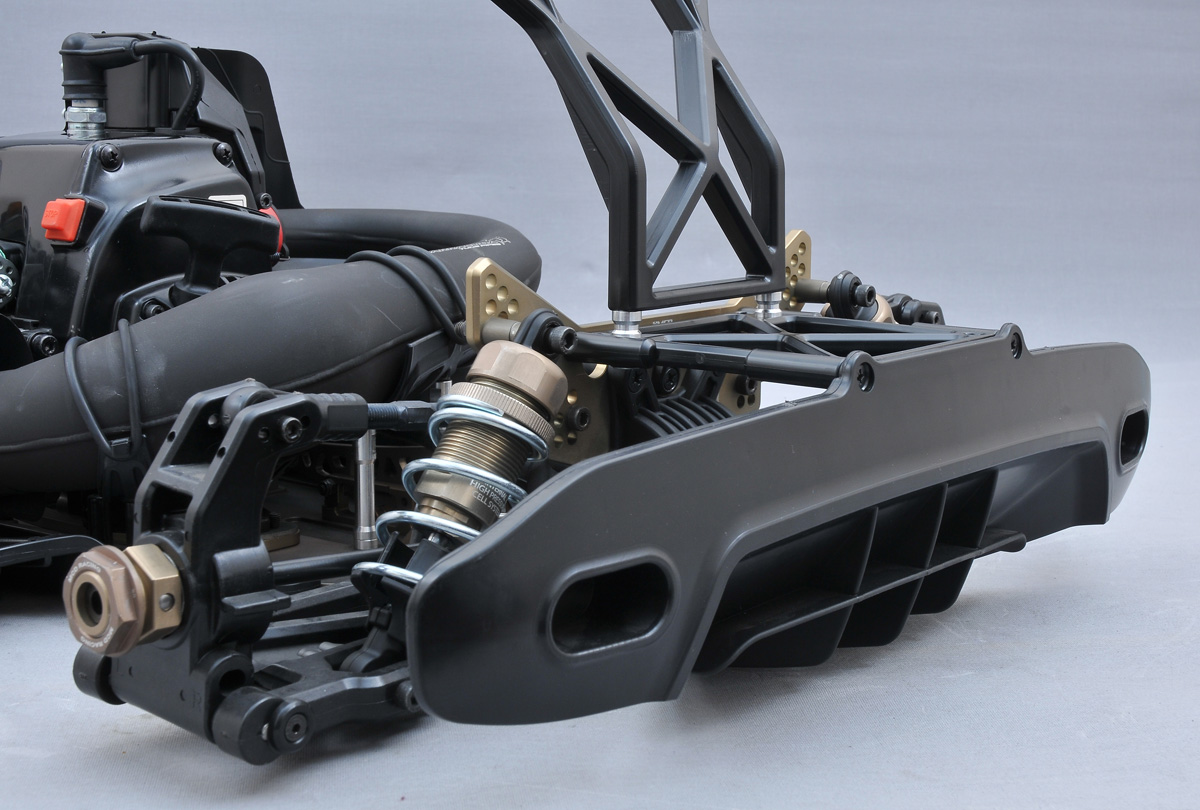

- No-Stress-Effect polyamide front bumper and rear diffuser
- Ultra durable steel ball cup-joints
- Super-Cooling V5 air ventilation system

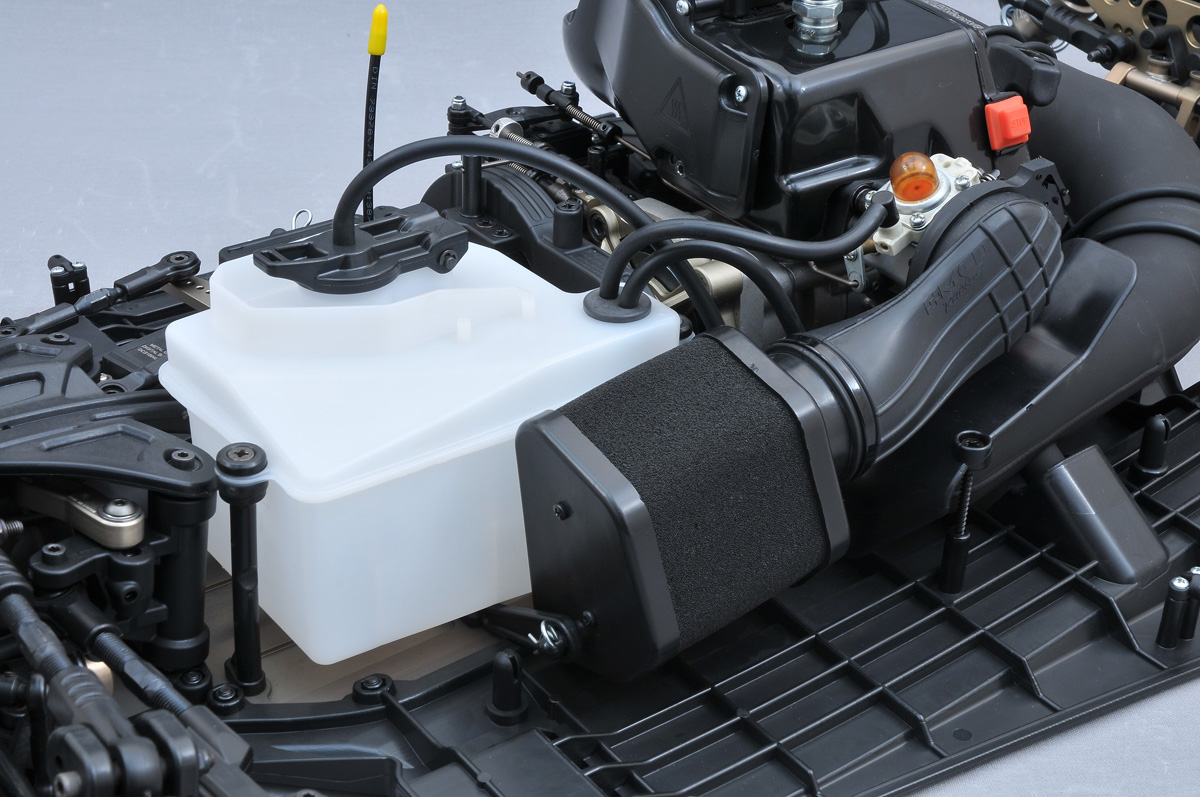

- Viper Racing Air Filters with dual layer foam and thermoplastic hose
- Barracuda G performance exhaust
- Adjustable CG
- Adjustable weight distribution
- Molded fuel tank with shake absorbing separators
- Front 90° 120° selectable ramp self locking diffs
- Center solid lock bar
- Rear planetary differential
- Fully composite body accessories
- Drive shaft boot
|
 |
|
ON-ROAD COMPARISON CHART |
|
Part (Order Code) |
Competition |
Pro |
FT-R |
Ultimate |
|
Short Chassis |
Long Chassis (MAX) |
|
Chassis |
5083 Alloy - Short |
7075 Alloy - CNC Machined - Anodized (400103A) |
7075 Alloy - CNC Machined - Anodized (400103A) |
7077 Alloy - CNC Machined - Anodized (400103A) |
|
Barracuda G Performance Exaust Set (750601X) |
OPT |
STD |
STD |
STD |
|
Clutch Bell Carrier |
Composite |
Alloy (415502A) |
Alloy (415502A) |
Alloy (415502A) |
|
Engine Clutch House Alloy (415701A) |
OPT |
OPT |
OPT |
STD |
|
DBB Ackerman Plate Standard 8mm (380203A) |
OPT |
STD |
STD |
STD |
|
Front Diff. |
Planetary F/R |
LSD F/R (200101X) |
LSD F/R (200101X) |
LSD F/R (200103X) |
|
Center Diff. |
Solid Lock Bar |
Solid Lock Bar |
LSD Center (200201X) |
LSD Center (200203X) |
|
Rear Diff. |
Planetary F/R |
Planetary F/R |
Planetary F/R |
LSD F/R (200103X) |
|
Diff. Case |
Composite |
Composite |
Composite |
Alloy (200402A) |
|
Front Diff. House Inner |
Composite |
Composite |
Composite |
Alloy (415102A) |
|
Rear Diff. House Inner |
Composite |
Composite |
Alloy (415102A) |
Alloy (415102A) |
|
Center Diff.Holder Set |
Composite |
Composite |
Alloy (415202A) |
Alloy (415202A) |
|
Front Wishbone Alloy (300104A) |
OPT |
OPT |
STD |
STD |
|
Front Hub L/R |
Composite |
Composite |
Alloy (300603A) |
Alloy (300603A) |
|
Rear Hub L/R |
Composite |
Composite |
Alloy (300604A) |
Alloy (300604A) |
|
L/R Caster Block |
Composite(6°) |
Composite(6°) |
0° Alloy (300704A) |
0°, ±4° Alloy (300705X) |
|
Pro-Bite Racing Clutch (290101X) |
OPT |
OPT |
OPT |
STD |
|
Turnbuckle Set |
Steel |
Steel |
Steel |
Alloy (301204X) |
|
Shock Absorbers |
Composite |
Alloy (320103X) |
Alloy (320103X) |
Alloy (320107X) |
|
Upper Shock Absorber Joint Cup |
Composite |
Composite |
Composite |
Alloy (320502A) |
|
Lower Shock Absorber M5 Joint |
Composite |
Composite |
Composite |
Alloy (320503A) |
|
M8 Upper Wishbone Rose Joint L/R Thread |
Composite |
Composite |
Alloy (340102A) |
Alloy (340102A) |
|
Servo Saver Upper Arm |
Composite |
Composite |
Composite |
Alloy (380102A) & Composite |
|
Steering Servo Turnbuckle |
Steel |
Steel |
Steel |
Alloy (381002A) |
|
Brake Plate |
Composite |
Composite |
Alloy (415302A) |
Alloy (415302A) |
|
Lay Shaft Carrier |
Composite |
Alloy (415402A) |
Alloy (415402A) |
Alloy (415402A) |
|
Rear Upper Stiffener Alloy (446201A) |
OPT* |
OPT* |
STD |
STD |
|
Front Stiffener |
Composite |
Composite |
Composite |
Alloy (445102A) |
|
Rear Stiffener |
Composite |
Alloy (445202A) |
Alloy (445202A) |
Alloy (445202A) |
|
Upper Stiffener Alloy |
OPT** |
OPT** |
Alloy (446101A) |
Alloy (446101A) |
|
Diff.House-Stiffener Spacer |
Composite |
Composite |
Alloy (460102A) |
Alloy (460102A) |
|
Carburetor / AirFilter Venturi |
Composite |
Composite |
Alloy (725302A) |
Alloy (725302A) |
|
Engine Insulator Alloy G230-G290 (726002A) |
OPT |
OPT |
OPT |
STD |
|
Radio/Servo Tray - Hydraulic Brake Compatible (930301X) |
OPT |
OPT |
OPT |
STD |
|
Brake Disc |
Spring Steel |
Spring Steel |
Light Weight ABS (260102S) |
Light Weight ABS (260102S) |
|
Front Wishbone Holder Set |
Composite |
Alloy (300203A) |
Alloy (300203A) |
Alloy (300203A) |
|
Rear Wishbone Holder Set |
Composite |
Alloy (300303A) |
Alloy (300303A) |
Alloy (300303A) |
|
Anti-Roll Bar Set F/R 3.5mm (360101X) |
OPT |
STD |
STD |
STD |
|
Front Tower |
Alloy 5mm |
Alloy 5mm (430303A) |
Alloy 5mm (430303A) |
Alloy 5mm (430303A) |
|
Rear Tower |
Alloy 5mm |
Alloy 5mm (430403A) |
Alloy 5mm (430403A) |
Alloy 5mm (430403A) |
|
*Required for assembly: 446201A, 415402A and 415302A |
|
**Required for assembly: 446101A and 446301A |
|
 |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 | | |
 |
 |
| Length |
: 1010 mm |
| Width |
: 480 mm |
| Overall height |
: 375 mm |
| Ground clearance |
: 25-42 mm |
| Weight |
: 14.2kg |
| Wheelbase |
: 610-620 mm (adjustable) |
| Trackwidth |
: 410mm
|
| Chassis material |
: 7075 Anodized T6 Alloy (4mm) |
| Suspension |
: Non-parallel non-line independent |
| Caster angle |
: 8°(6° - 10°(total caster) adjustable) |
| Camber angle |
: Adjustable |
| Toe angle |
: In-board and out-board adjustable |
| Anti-squat |
: 3°(adjustable) |
| Rear-squat |
: 5° |
| Dive, Anti-dive |
: 6°-10°(adjustable) |
| Shock absorber |
: Coil-over Oil-filled Internal High Pressure Cell |
| Transmission |
: Full-Time 4WD 3-Diff Shaft Driven |
| Gear ratio |
: 7,2:1 (18 available 7,2:1 to 10,67:1) |
| Tyre size |
: 65 x 160 mm |
|
Order codes: 00525001: XR5 Max Rolling Chassis Pro
Recommended Retail Price: 1,599 EUR
00525201: XR5 Max E-Chassis Pro
Recommended Retail Price: 1,599 EUR
|
|
 |







|
|

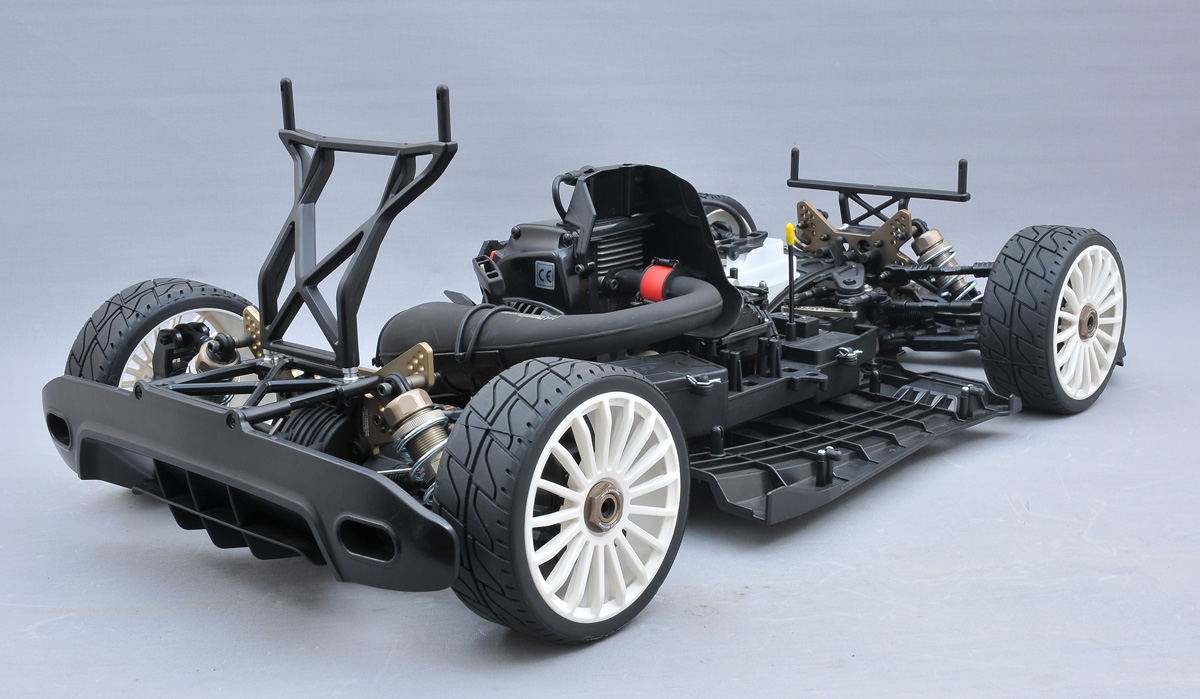

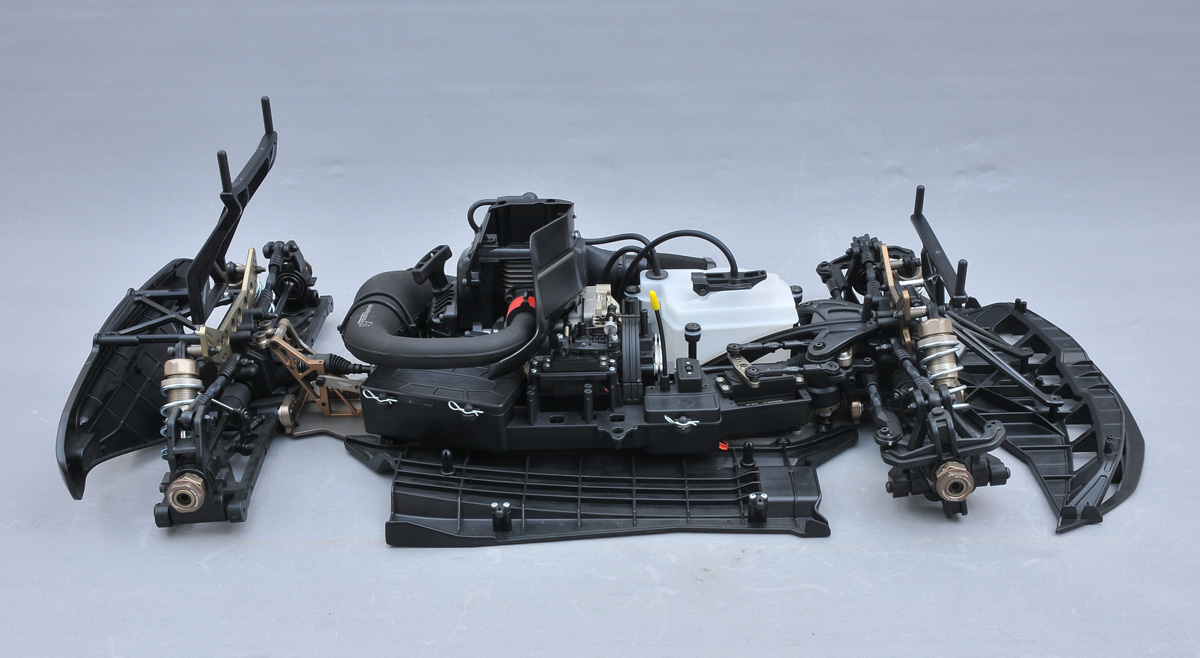

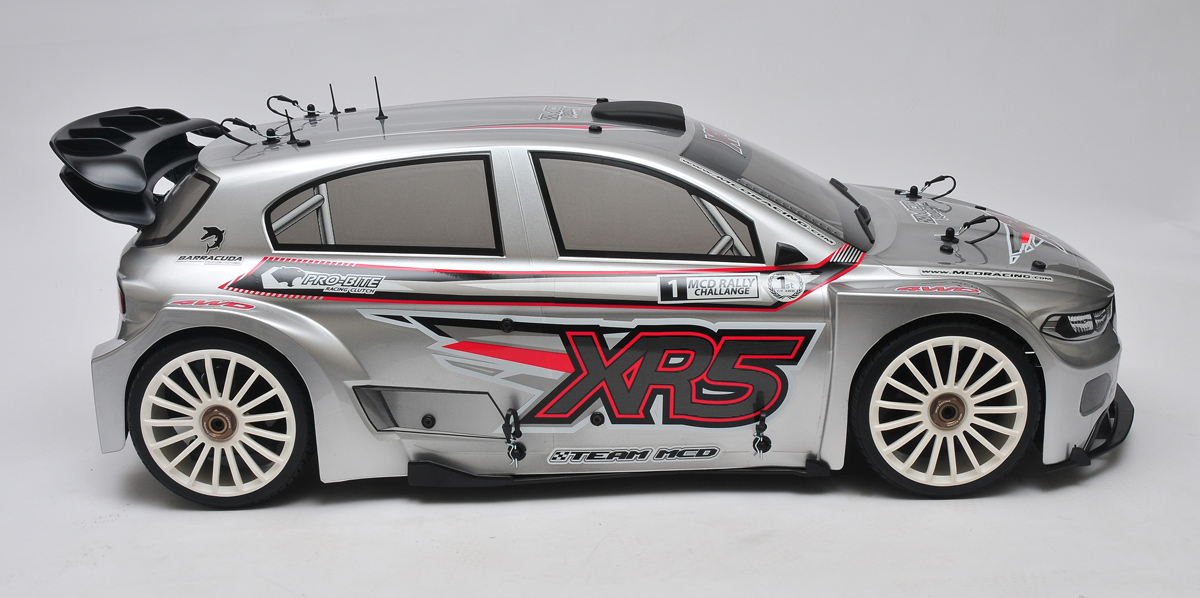

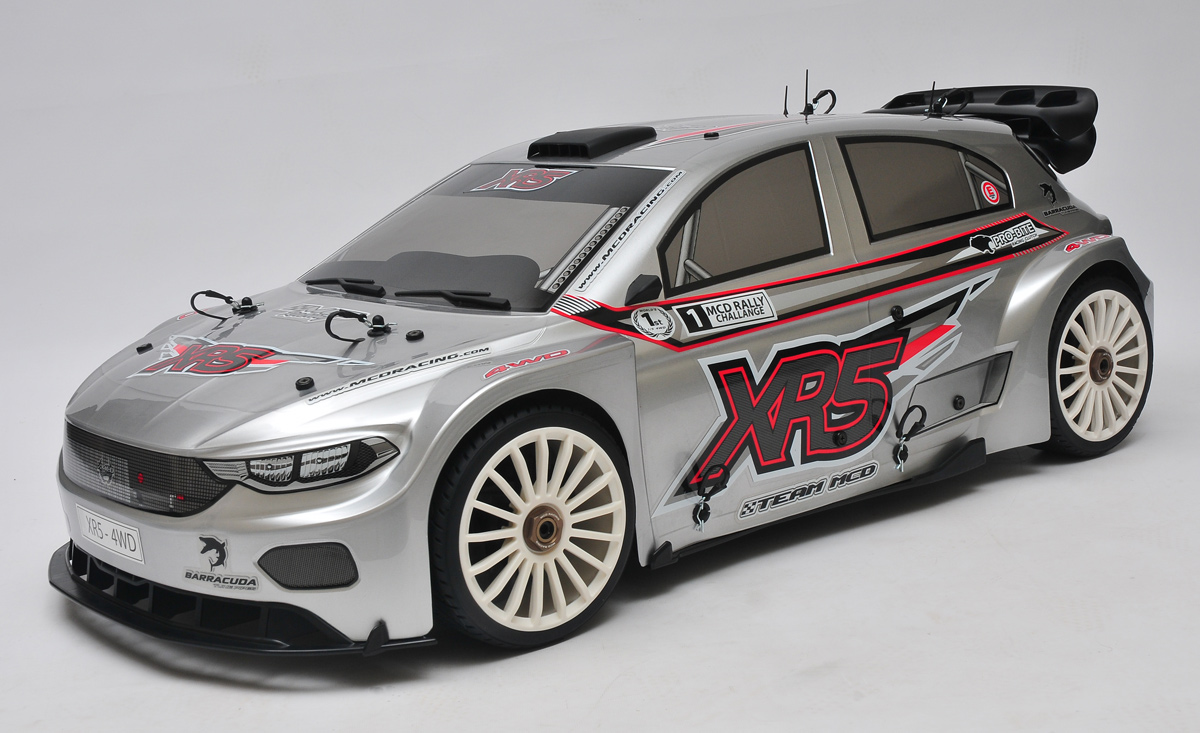

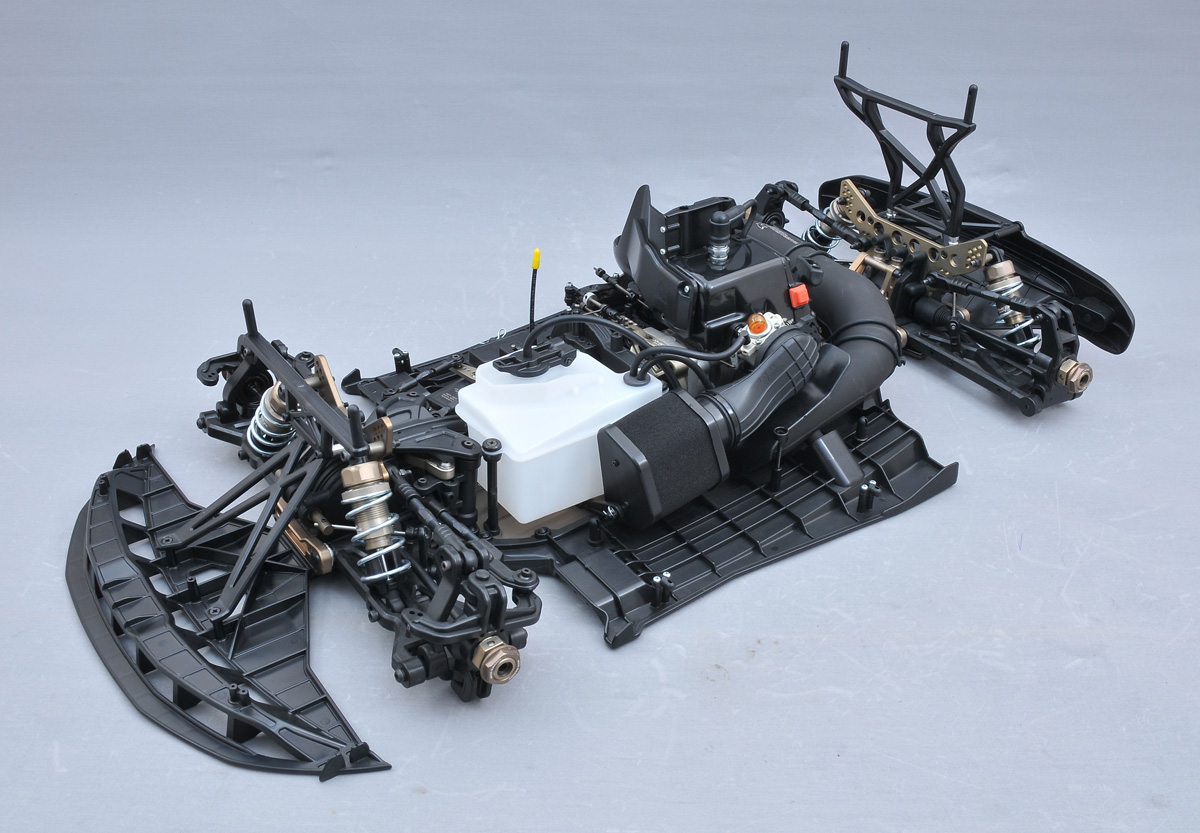

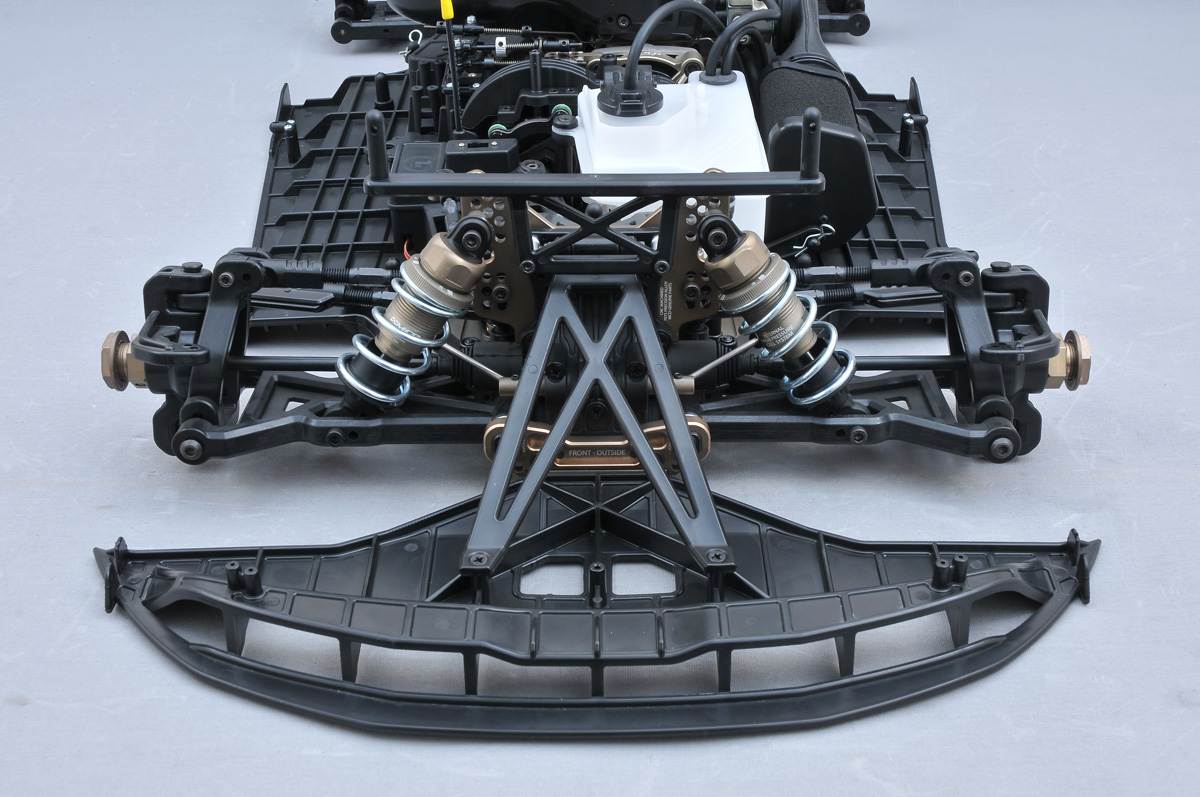

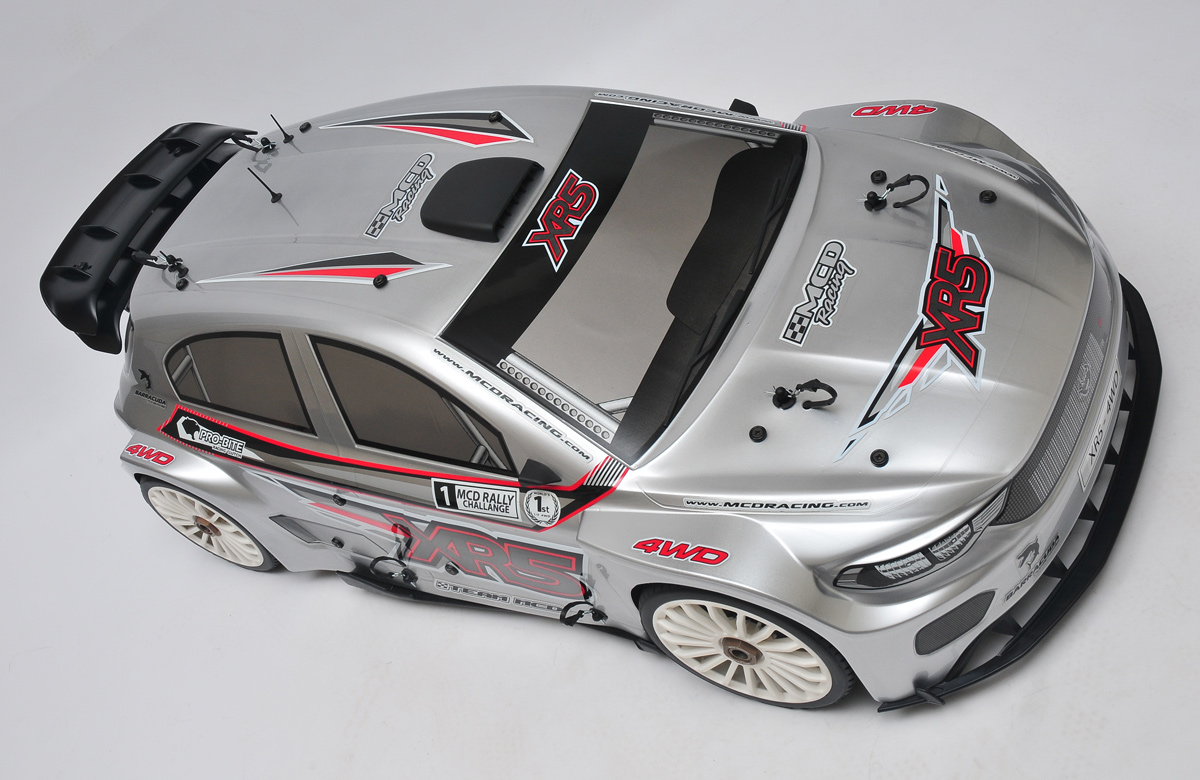

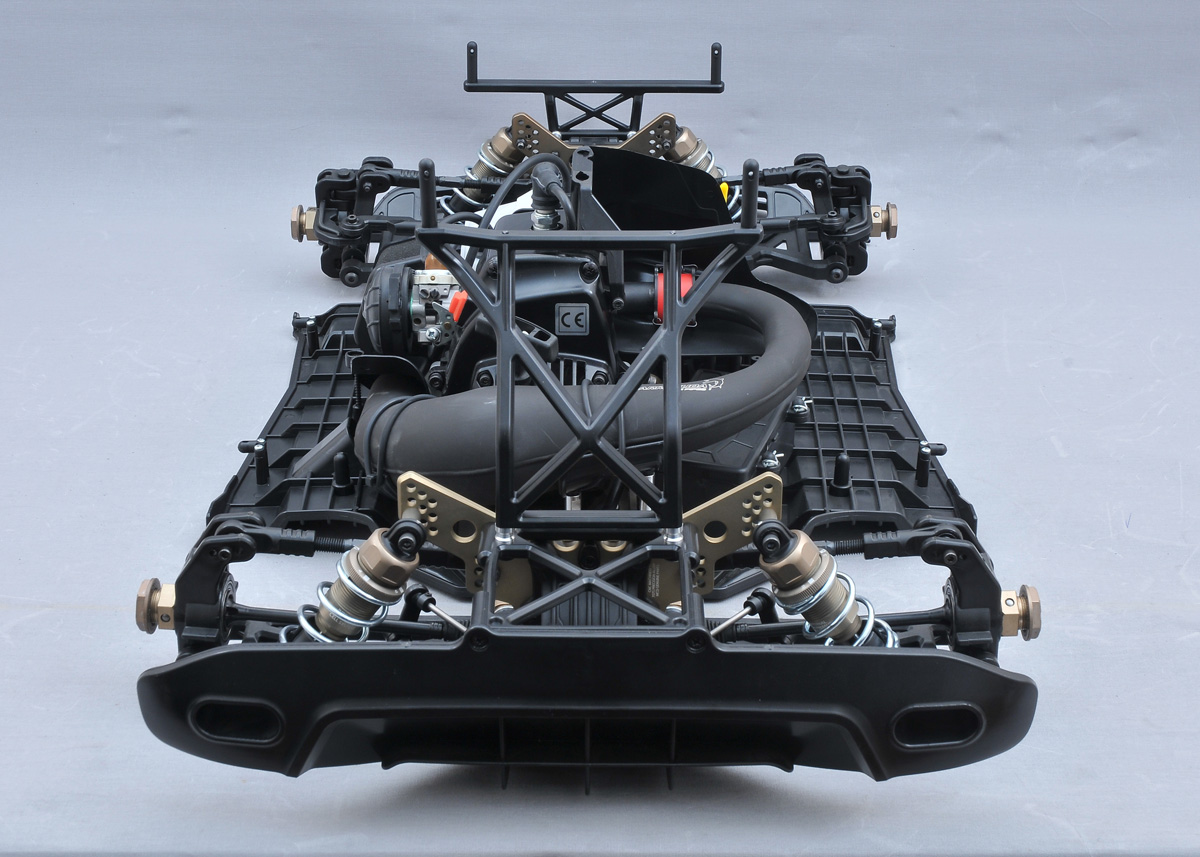

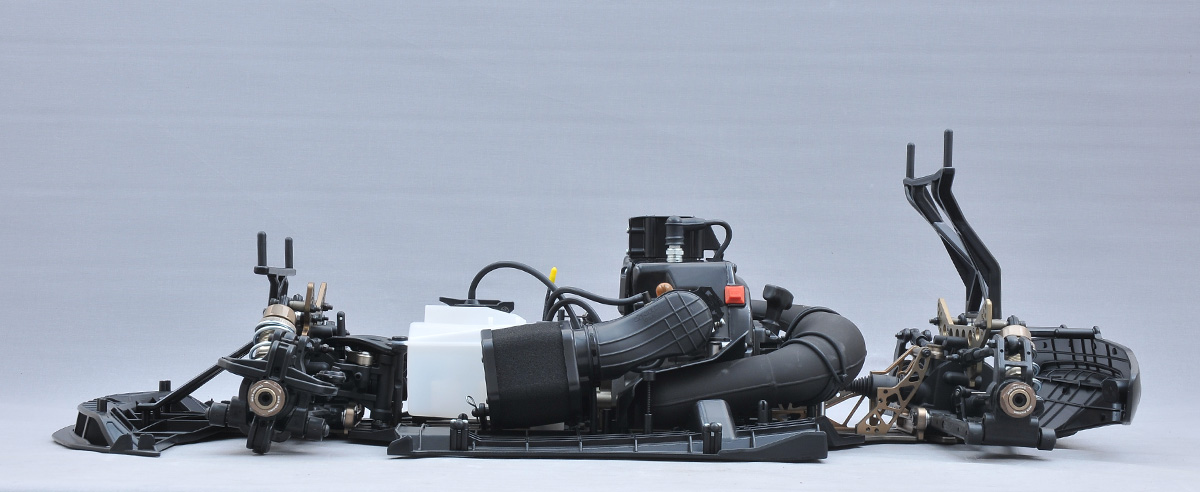

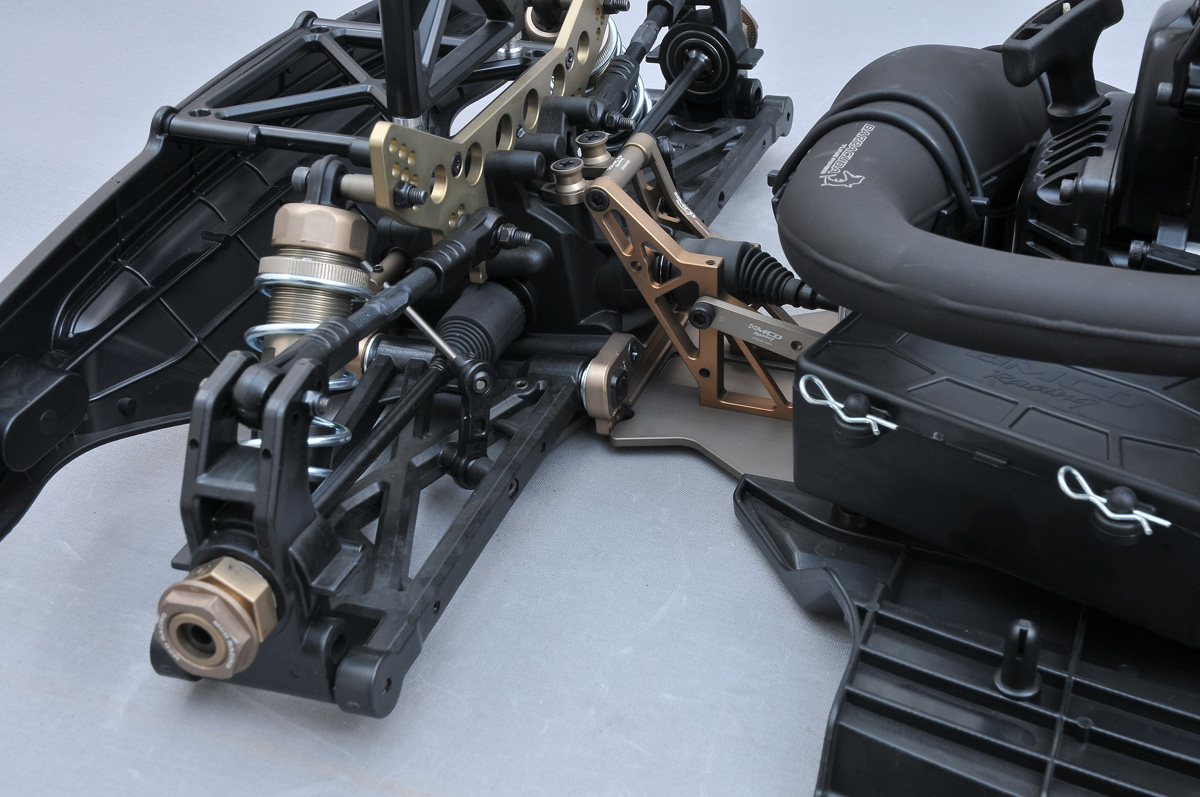

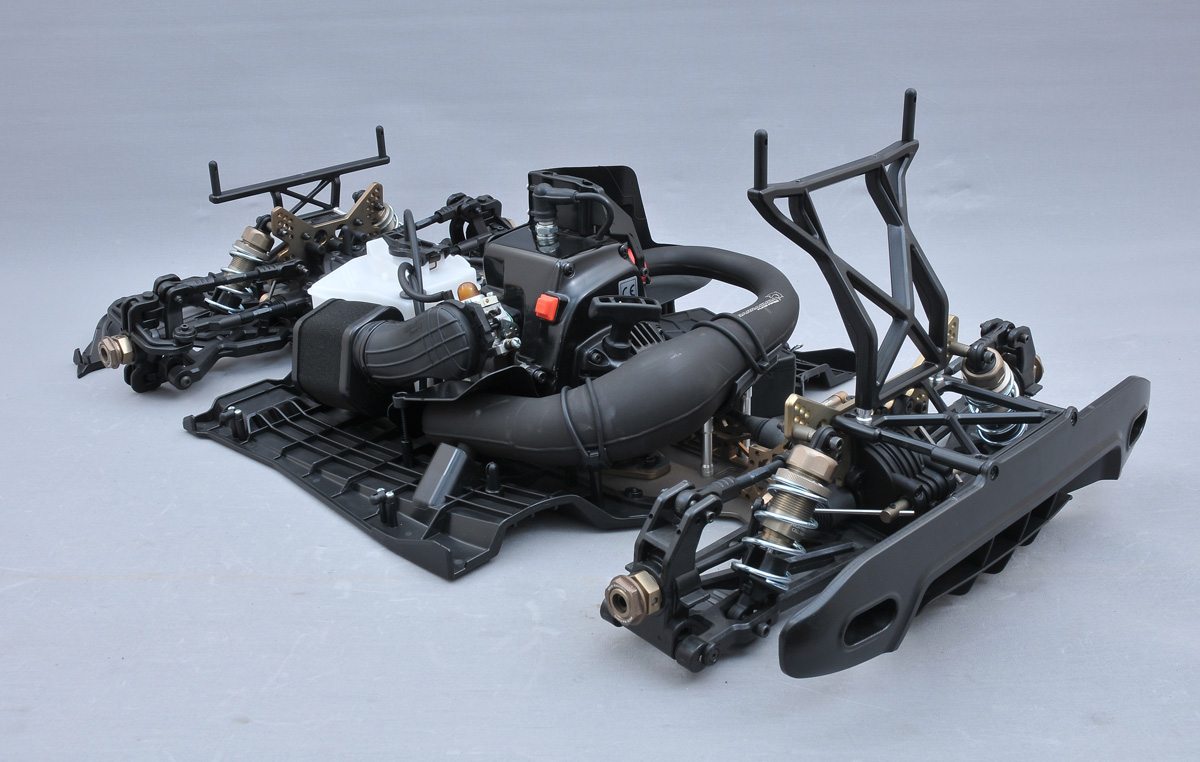

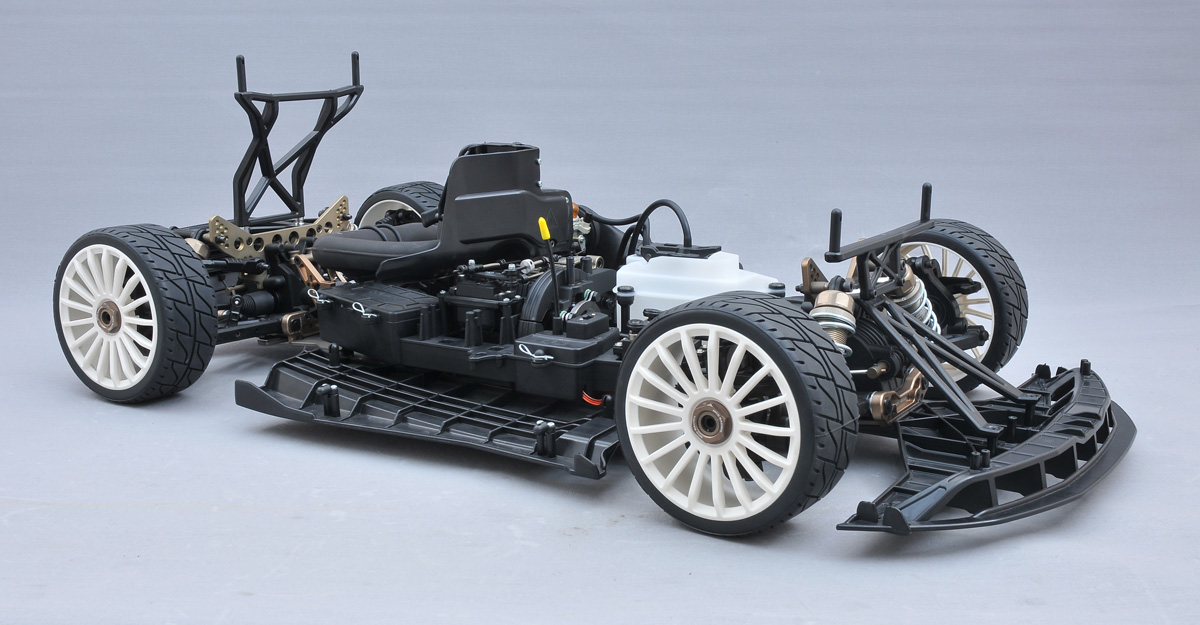

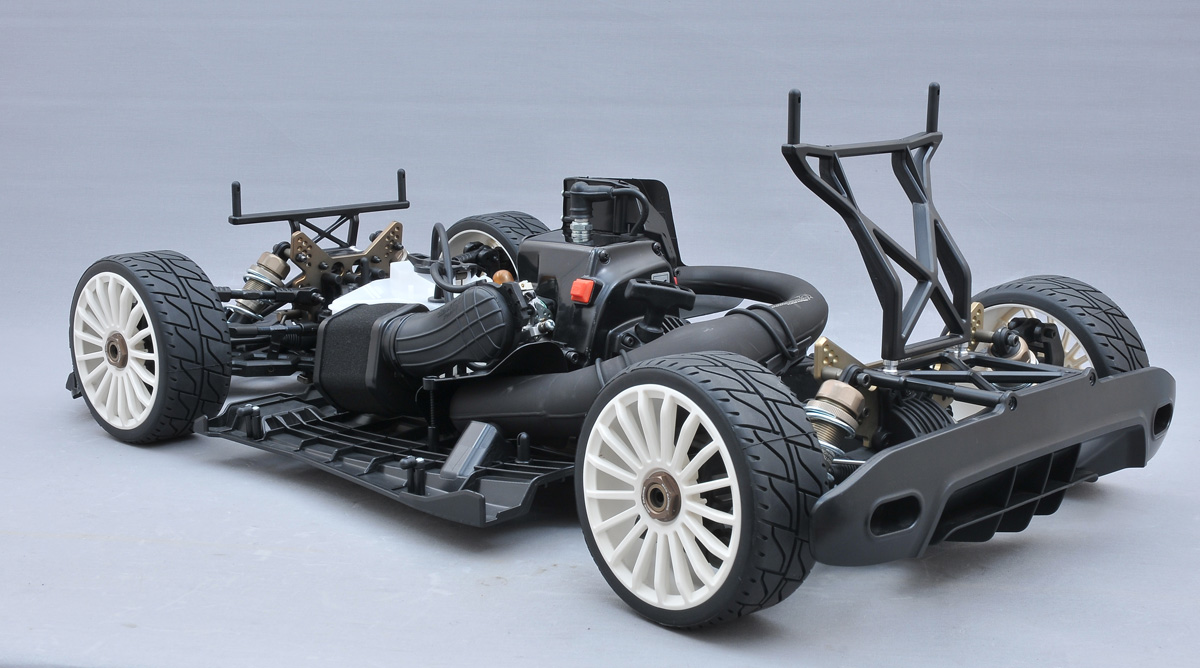

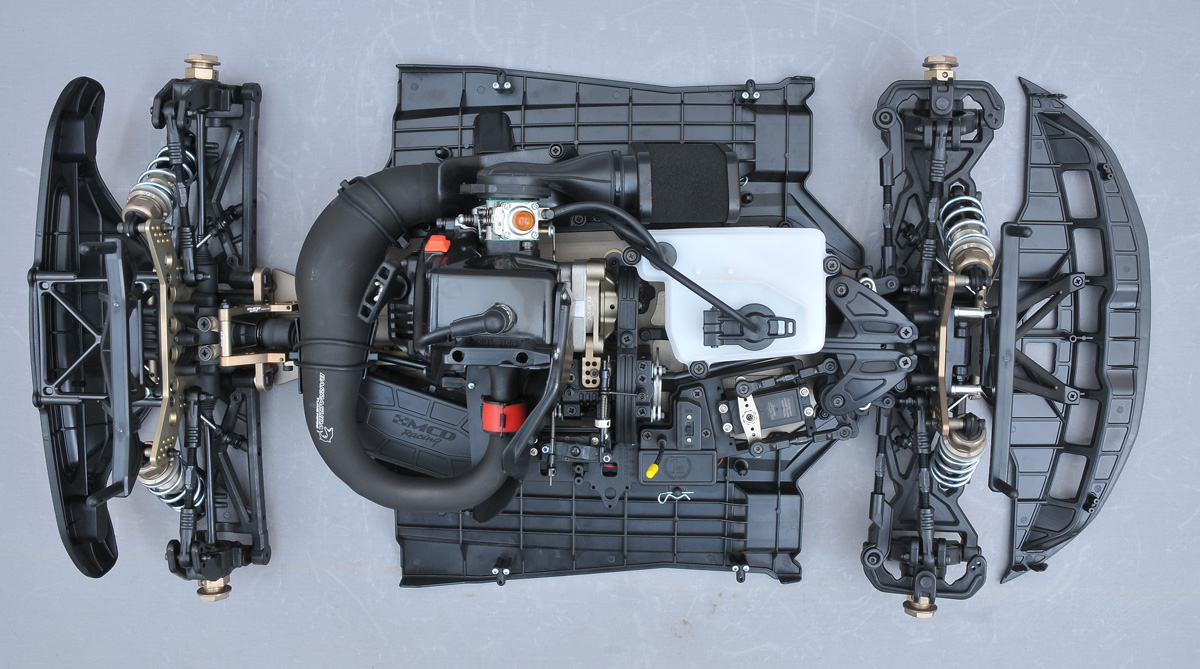

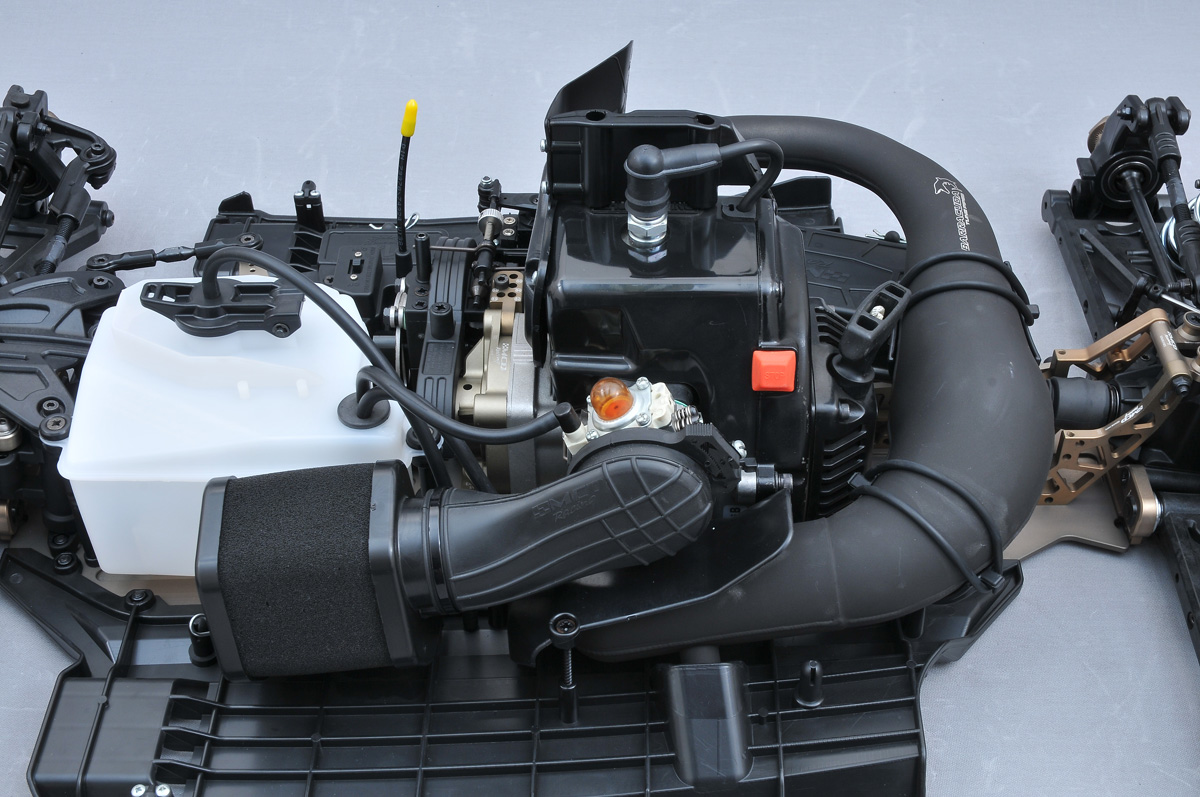

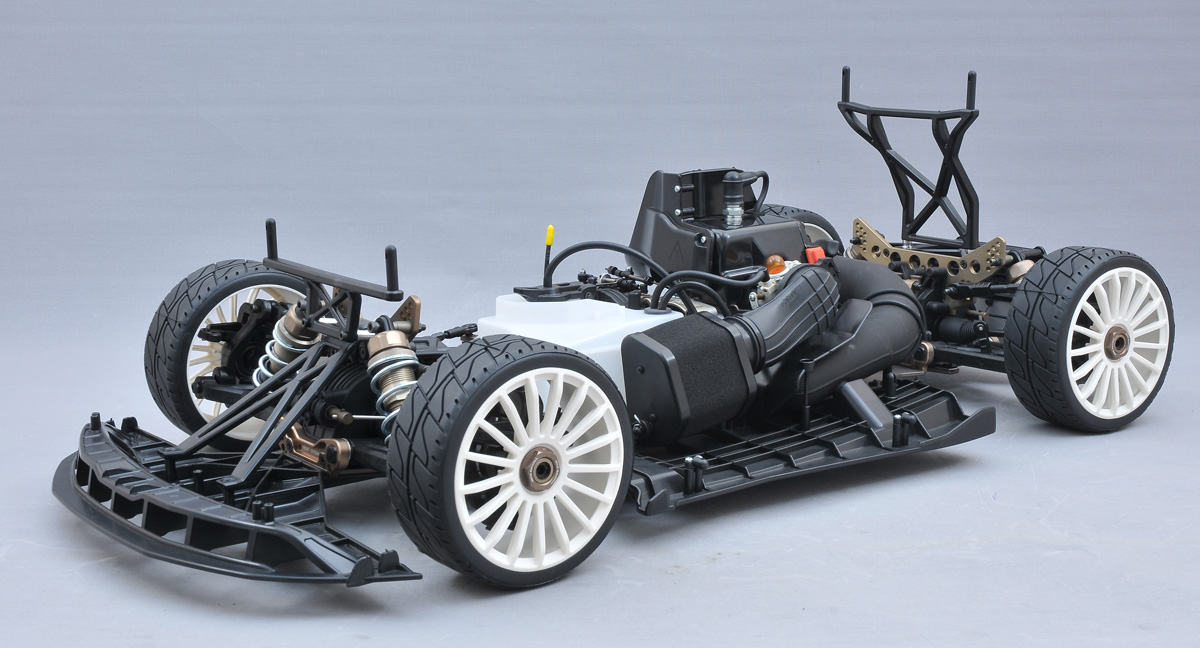

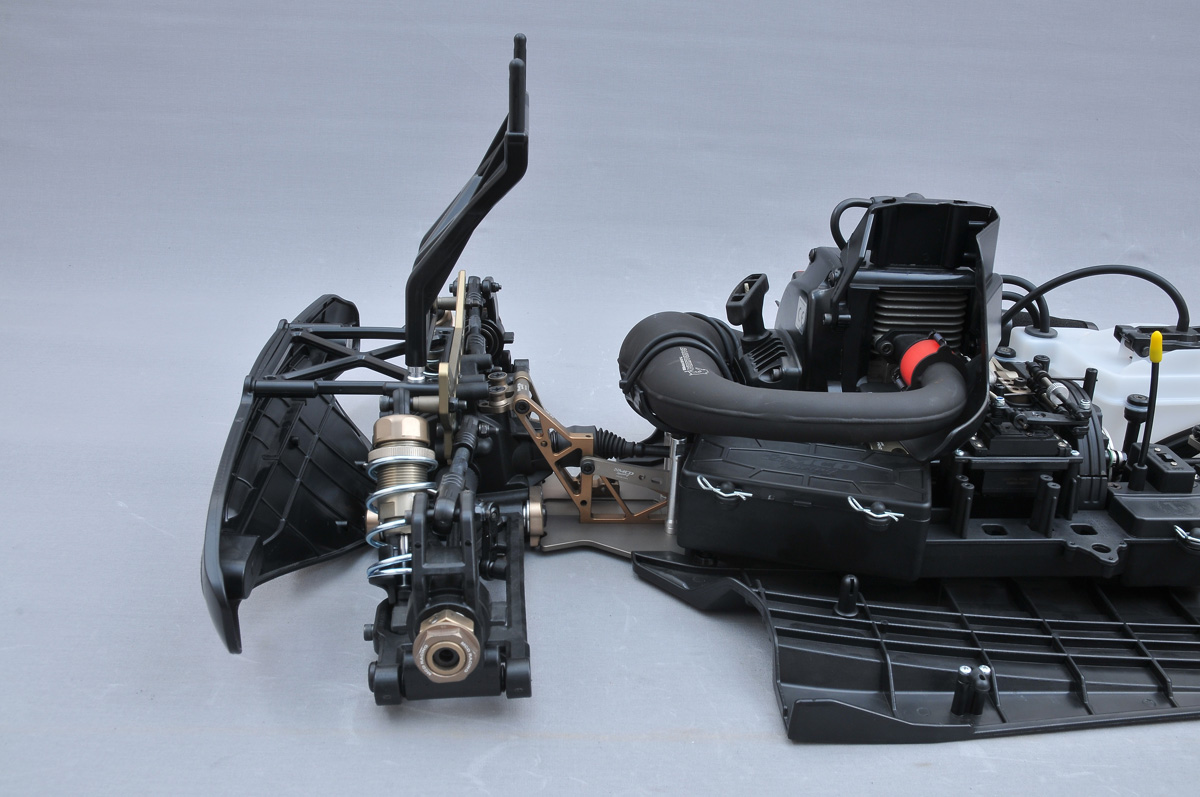

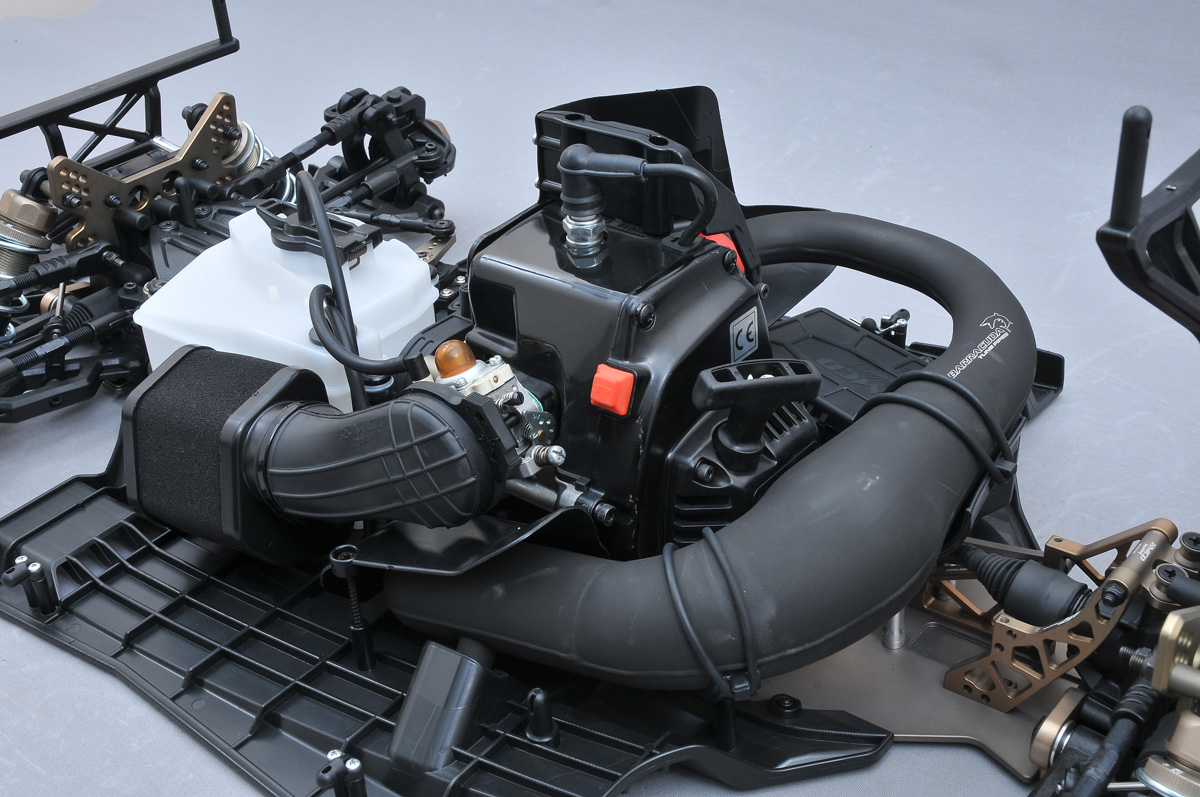

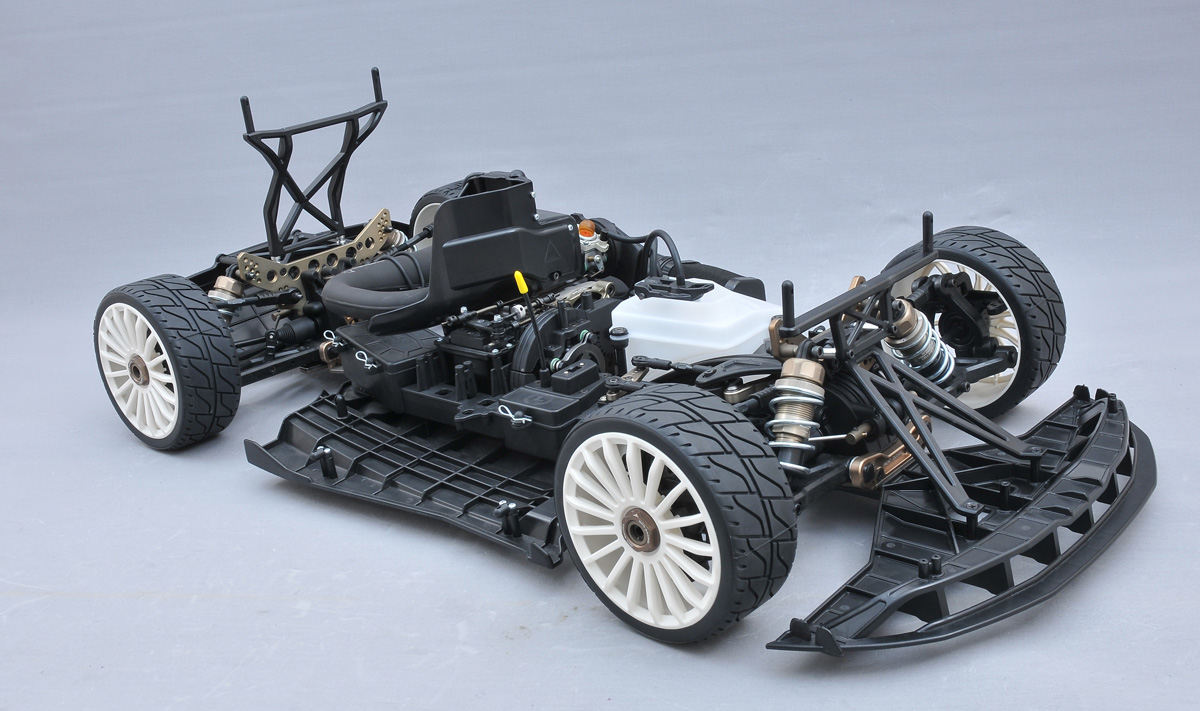

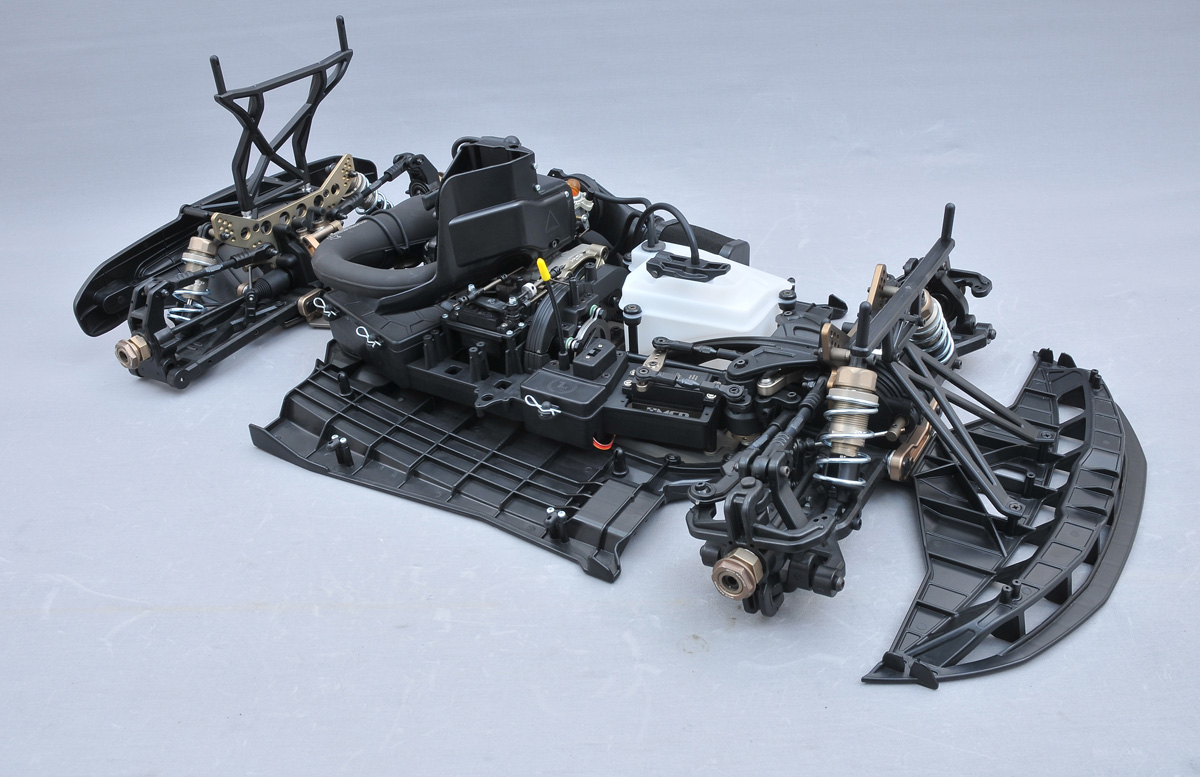

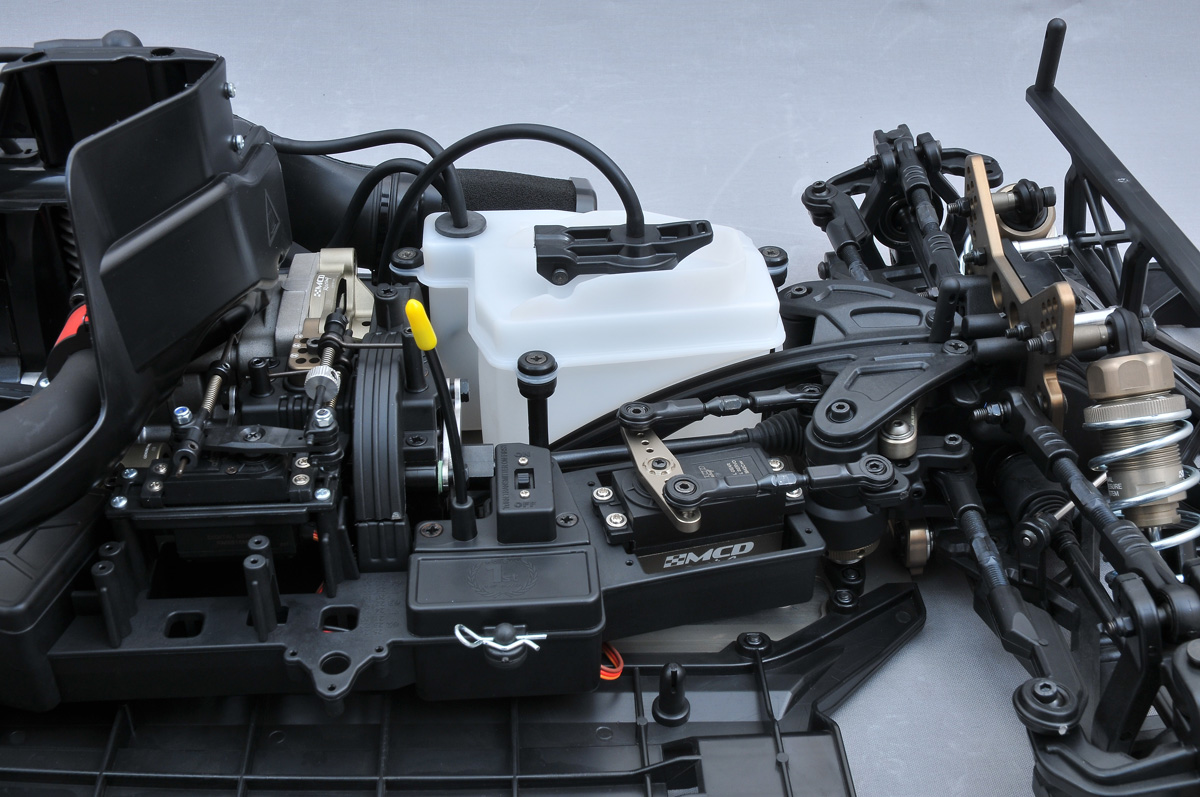

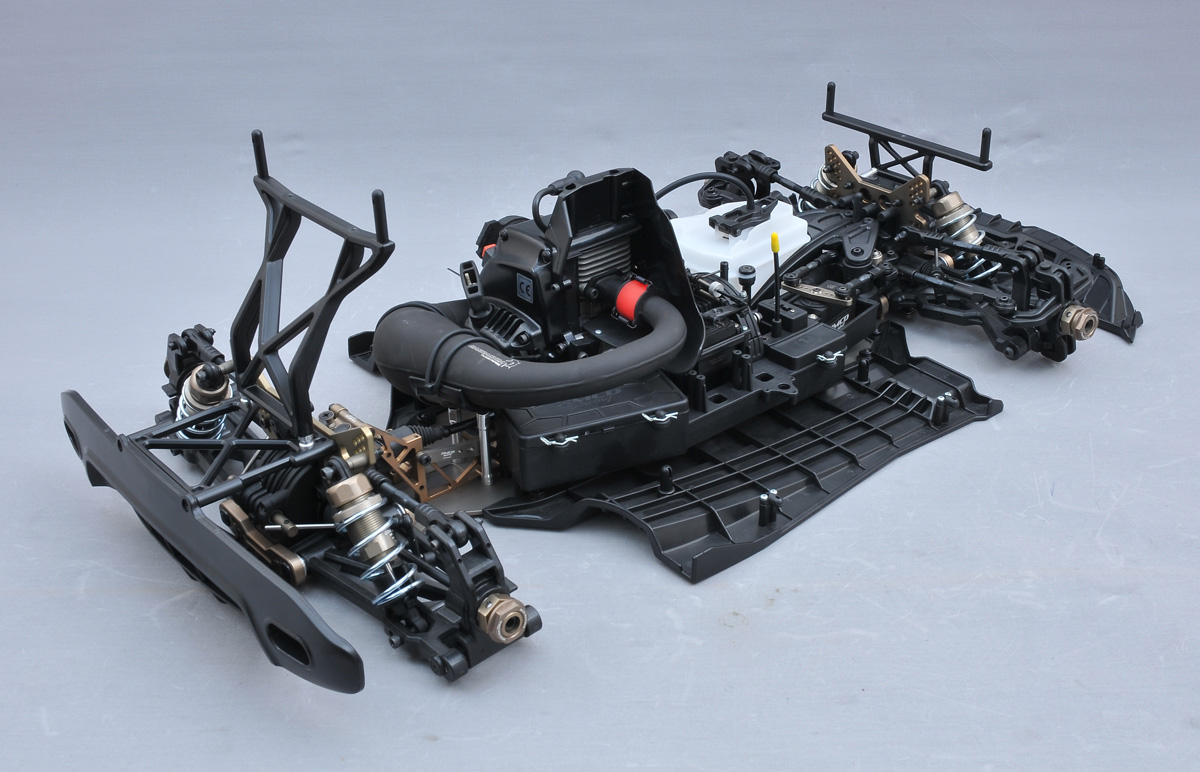

Some parts (engine and radio gear) shown on the pictures are for photographing purposes only and not included in the car.
The Company reserves the right, at its discretion, to change and modify some properties of products such as colors of wheels, tire patterns, compound of tires without notification.
Required for operation (not included): Engine, 2 ch. Radio, steering servo and throttle/break servos

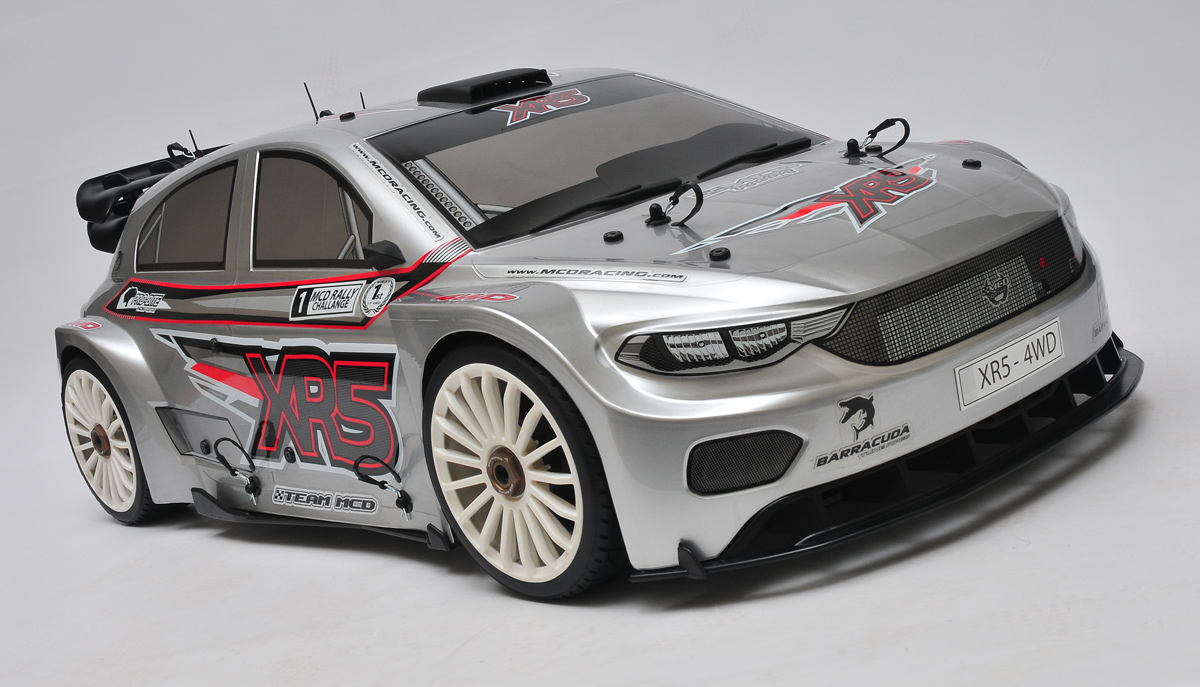

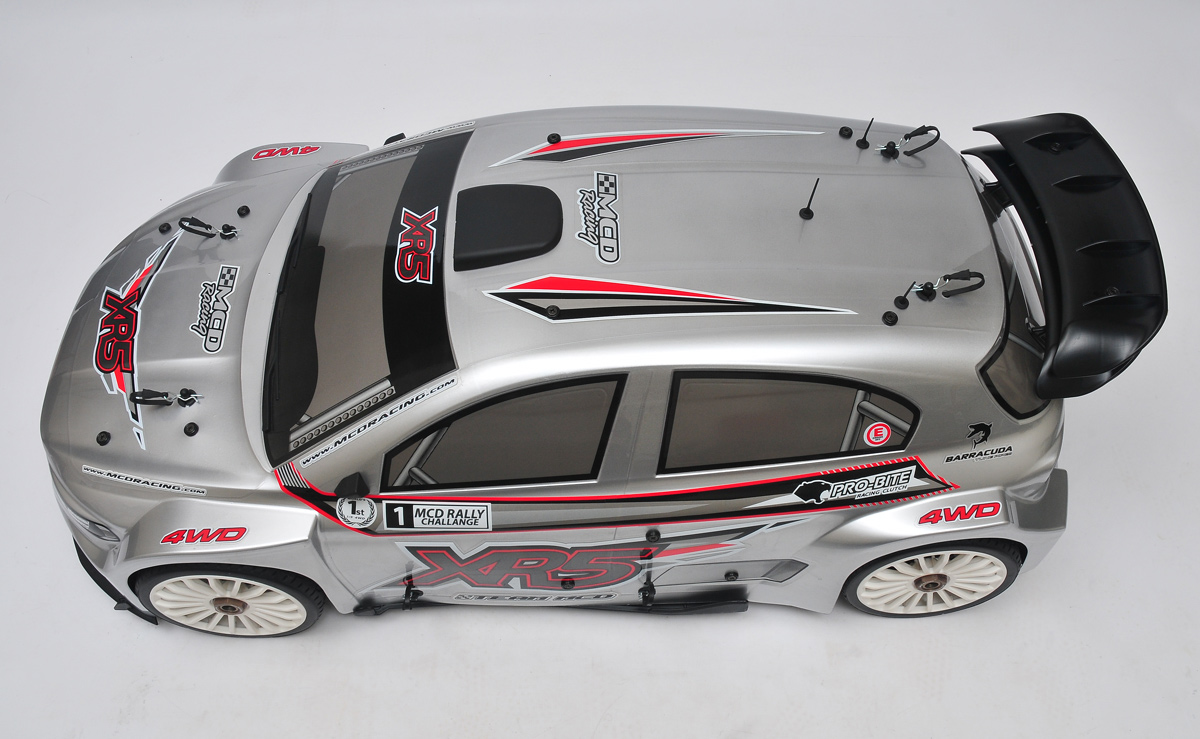

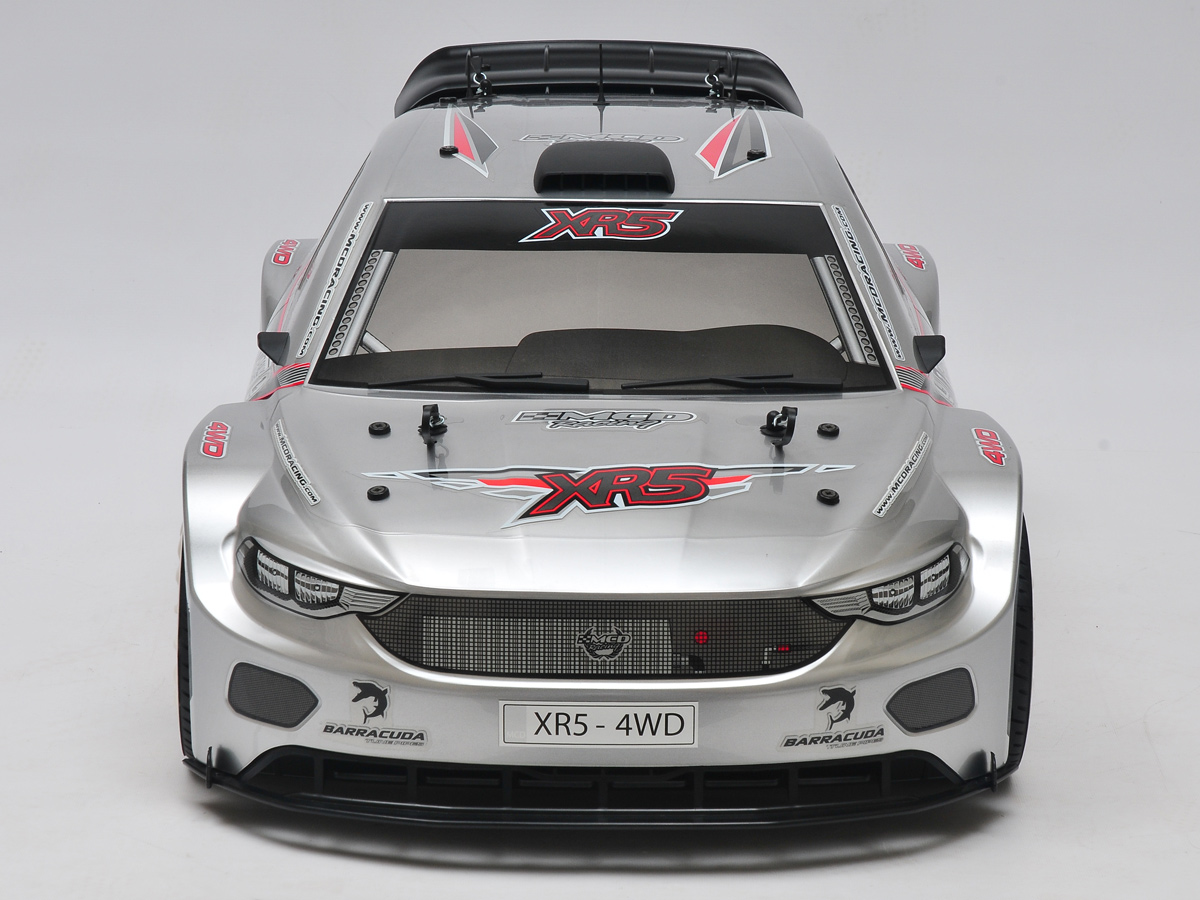

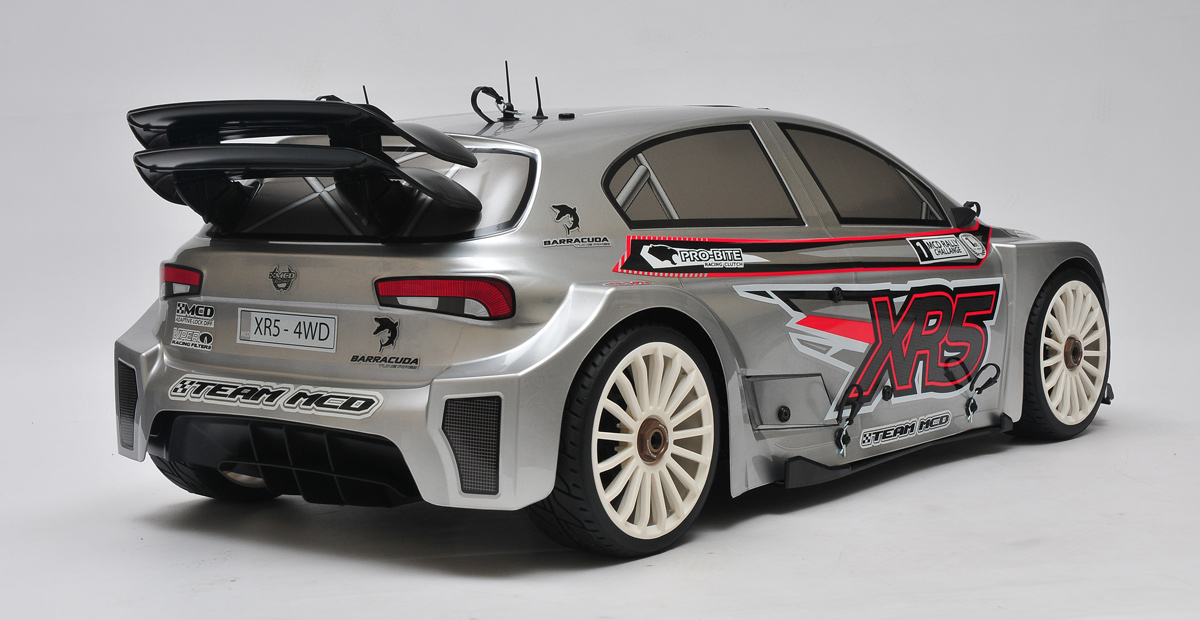

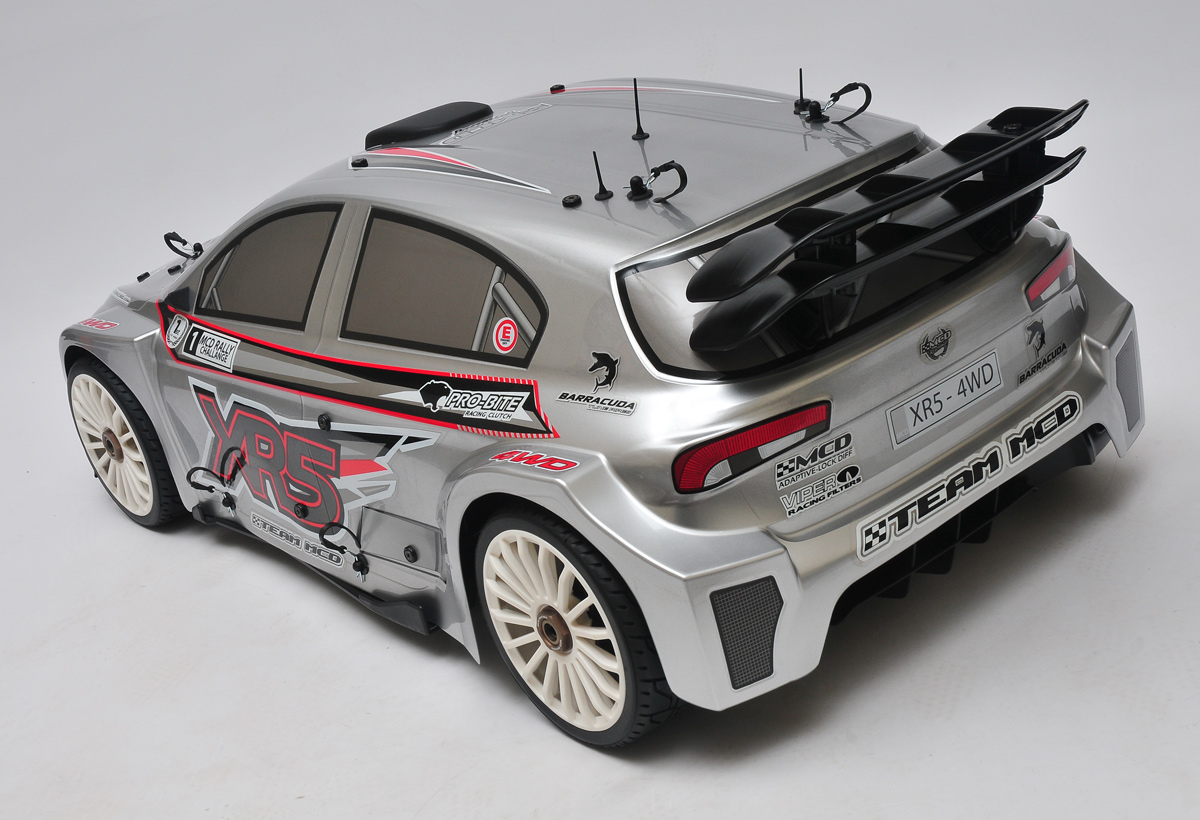

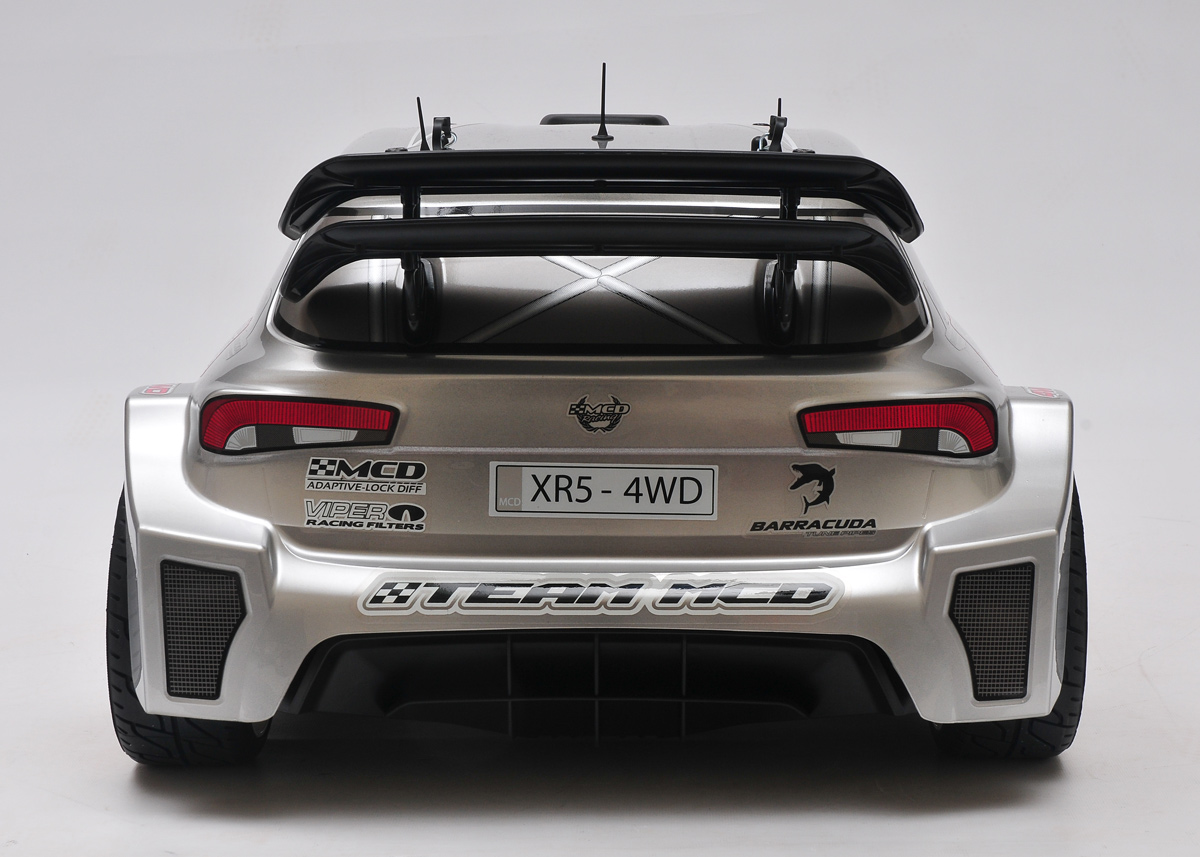

Cars come with a basic decal set, they may differ from the images on this page.
|
|
 |
|
