RALLY V4 |
 |
|

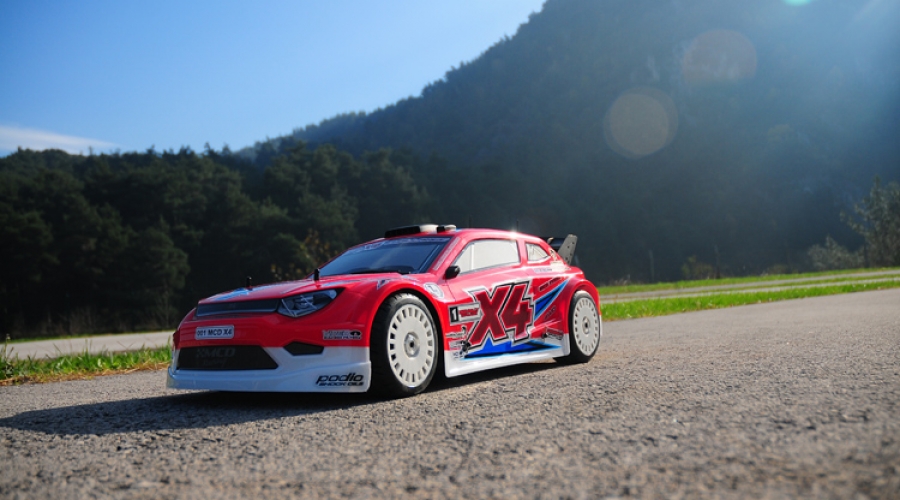

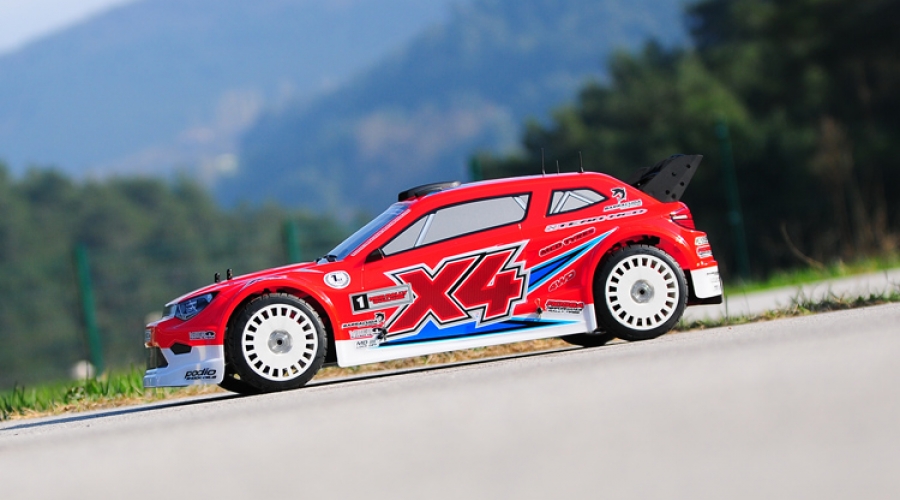

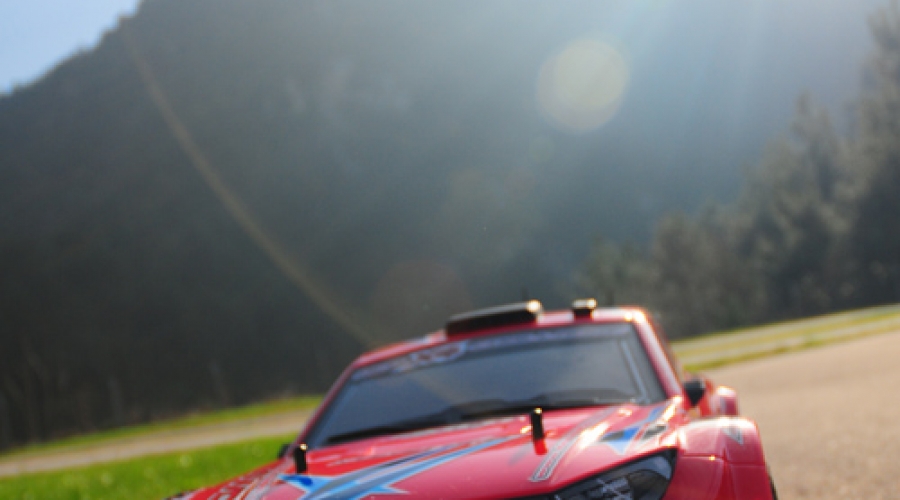

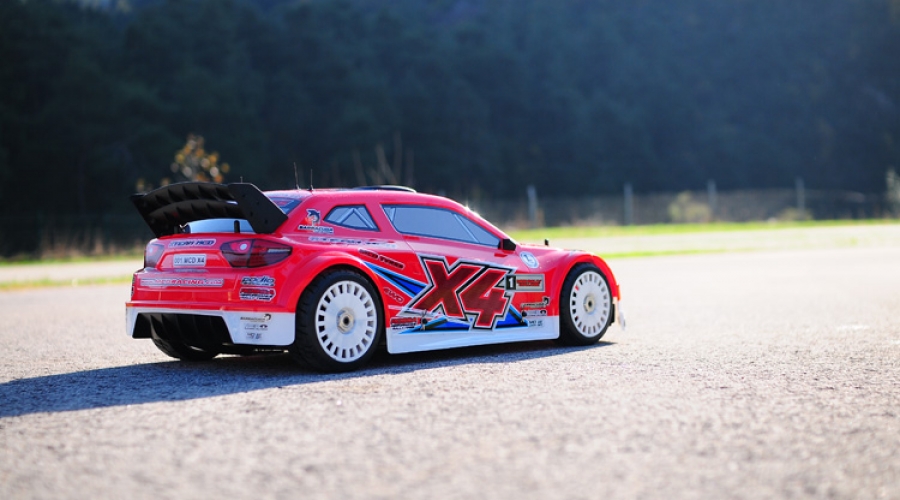

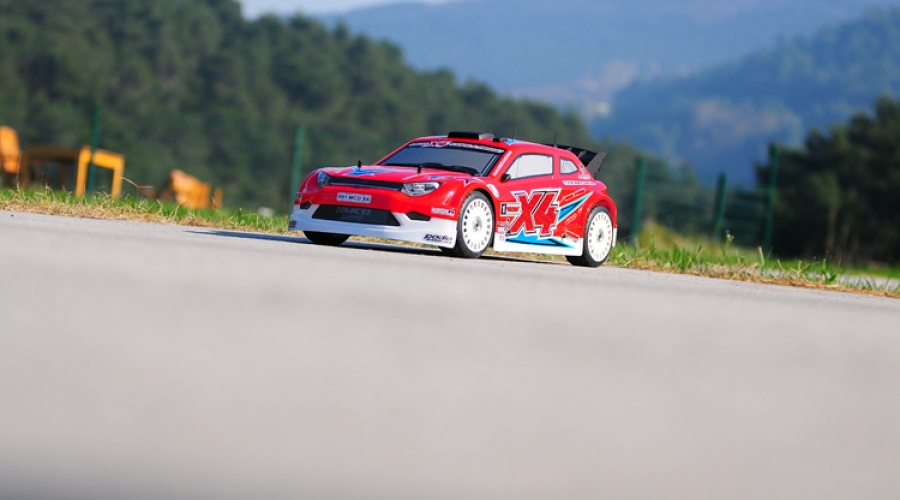

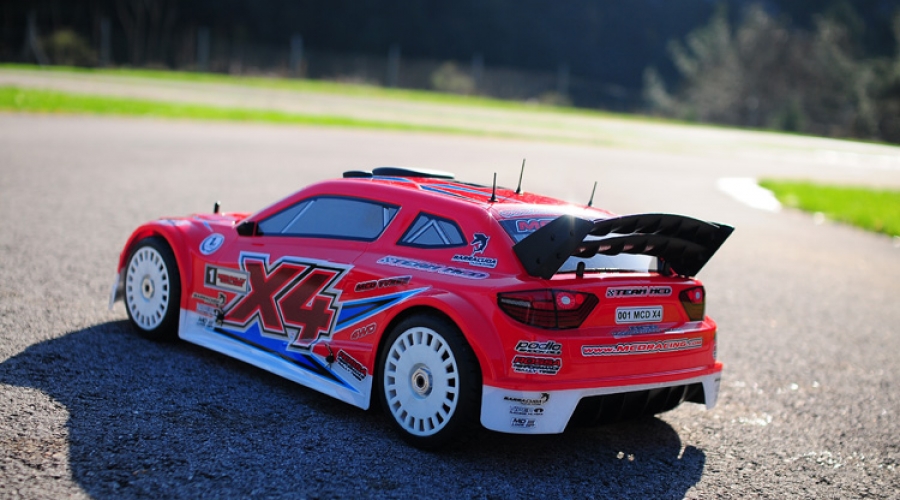

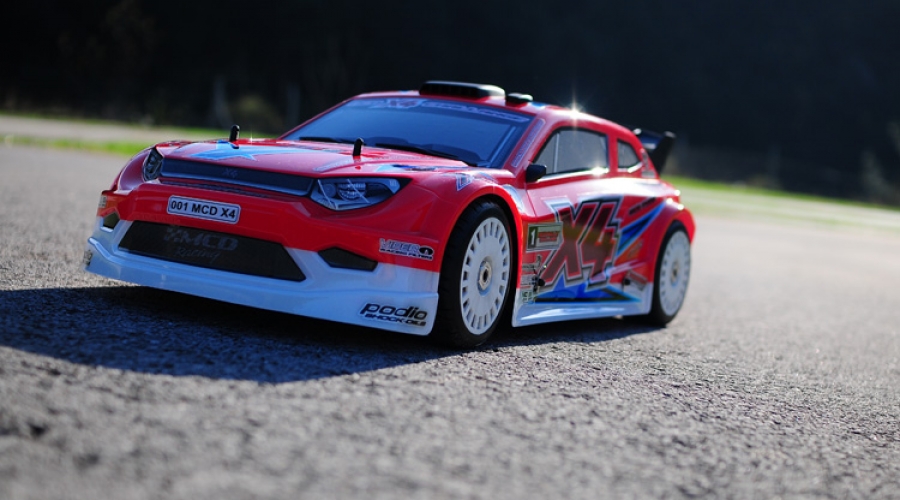

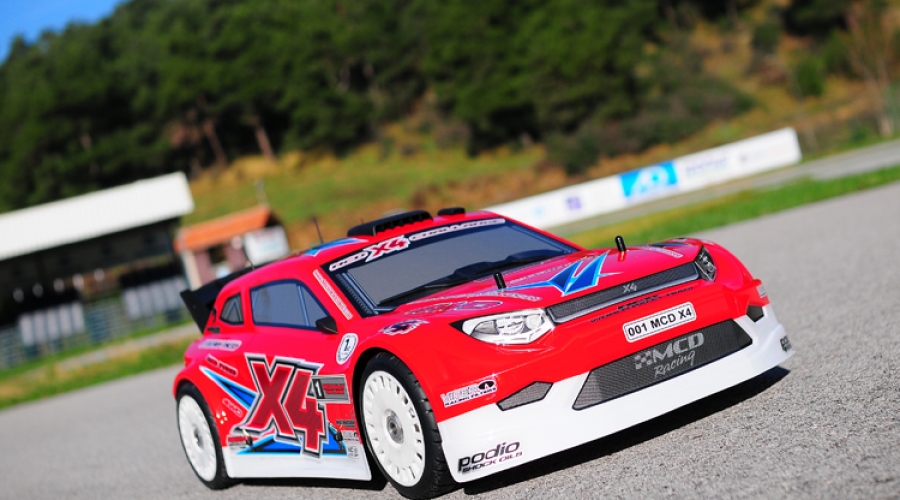

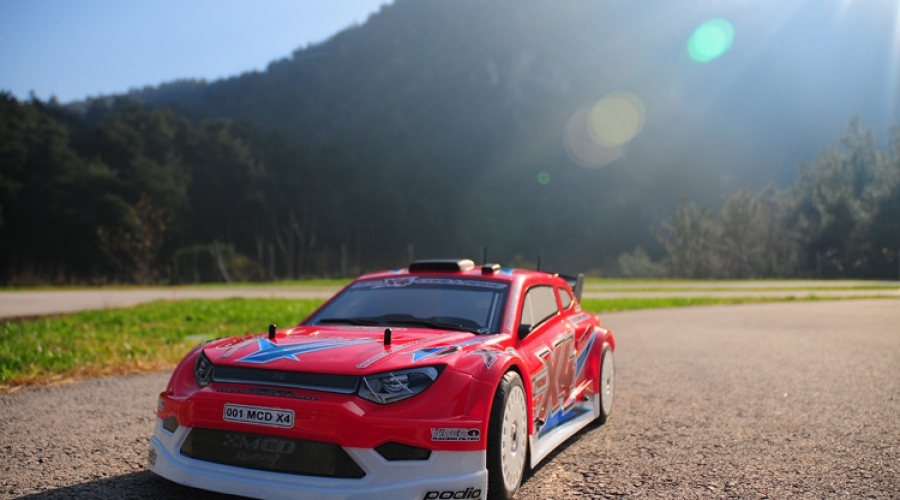

X4 Rally Designed to Race
Designed to fulfill the expectations of our most passionate clients, the X4 Rally continues the MCD tradition of putting the thrill into racing as a result of track-derived technological innovation. This thrillingly agile, beautifully balanced sporty four-wheel drive rally epitomizes MCD's talent for innovation and design.
X4's racing experience can be felt not only in terms of pure technological transfer but also on a more emotional level, because of the imposing look that is harmoniously integrated with dynamic appearance that continues the great MCD tradition in a fabulous style.
The X4 Features
- Fourth generation chassis & suspension arms
- Sophisticated 4WD ShaftDriven mechanics
- Ultra strengthened chrome drive shaft and axle
- Factory assembled chassis
- Improved differential spiral bevel gears & diff house
- Hard anodized alloy roll-cage
- New design coil-over hydraulic shocks & progressive springs
- CNC machined T6 aircraft alloy chassis
- New 24 mm hexagonal rim-blocks
- New Strengthened lower&upper long wishbones
- 142mm Rossa Tarmac Rally Tyres
- Solid and durable side guards
- Water-resistant receiver and battery box
- Clear body shell
- Ultra durable, heavy duty central steel double disc brake rotors and bronze pads
- New design extended rear shock towers and shock absorbers
- New design ultra hardened steel transmission gears
- New design servo tray
- Fully adjustable sway bars
- New wishbone brackets
- No-Stress-Effect polyamid front bumper
- New No-Stress-Effect rear diffuser
|
 |
|
|
 |
 |
 |
 |
 |
|
Detailed body fittings |
Closed central diff house |
Front bumper |
Rear diffuser |
Solid rally wishbones |
 |
 |
 |
 |
 |
|
Double step rally wings |
Sophisticated double wishbone, suspension |
Precut decal set |
Front kick-up angle |
Rear squat angle |
|
| Technical Specifications |
| Length |
: 852 mm |
| Width |
: 403-407 mm |
| Overall height |
: 281 mm |
| Ground clearance |
: 12-35 mm |
| Weight |
: 11.7 kg |
| Wheelbase |
: 536-544 mm |
| Trackwidth |
: 345/345 mm
|
| Chassis material |
: T6 Alloy (4mm) |
| Suspension |
: Non-parallel non-line independent |
| Caster angle |
: 0-6 Adjustable |
| Camber angle |
: Adjustable |
| Toe angle |
: 0-3 Degrees |
| Roll Center |
: 2 Position Adjustable |
| Ackerman |
: 2 Position Adjustable |
| Front Kick-up |
: 10 Degrees |
| Rear Squat |
: 5 Degrees |
| Shock absorber |
: Coilover Oilfilled 3 step adjustable |
| Transmission |
: Full-Time 4WD Shaft driven 3 differentials |
| Gear ratio |
: 4:3 to 12,3:1 (12 different GearBox ratios) |
| Tyre size |
: 63 x 142 mm |
| Engine type |
: Zenoah - CY 23cc, 26cc, 27cc, 29cc *
|
|
|
COMPETITION Extra Features
|
|
 |
|
Double brakes
|
|
|
|
|
|
|
|
|
|
|
Required for operation (not included): Engine, 2 ch. Radio, 2x steering servos, 1 throttle/break servos |
|
|
|
|
 |
|
