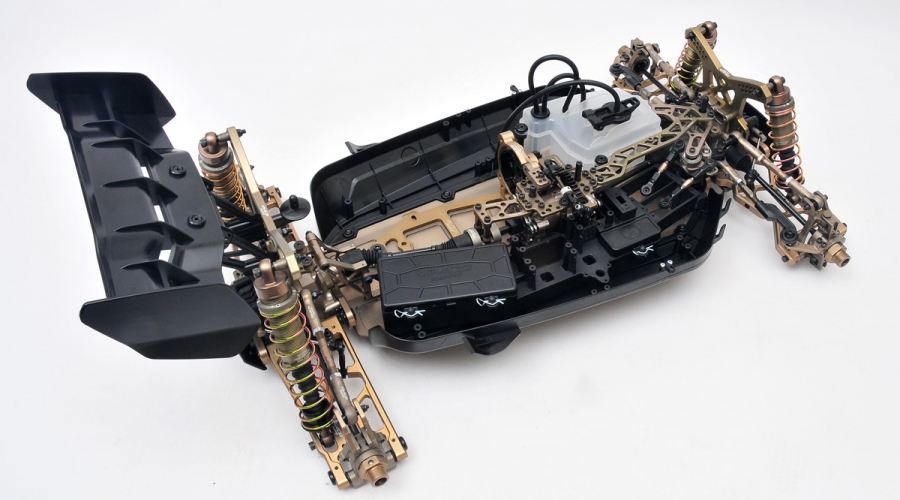

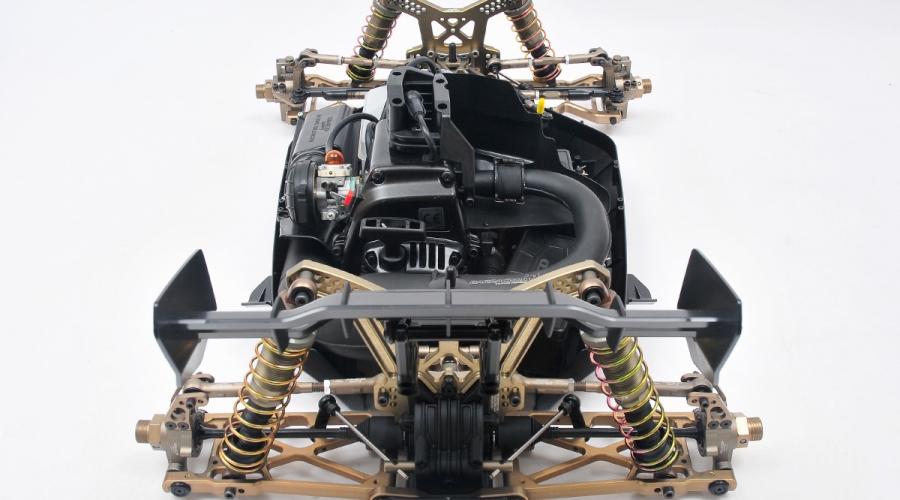

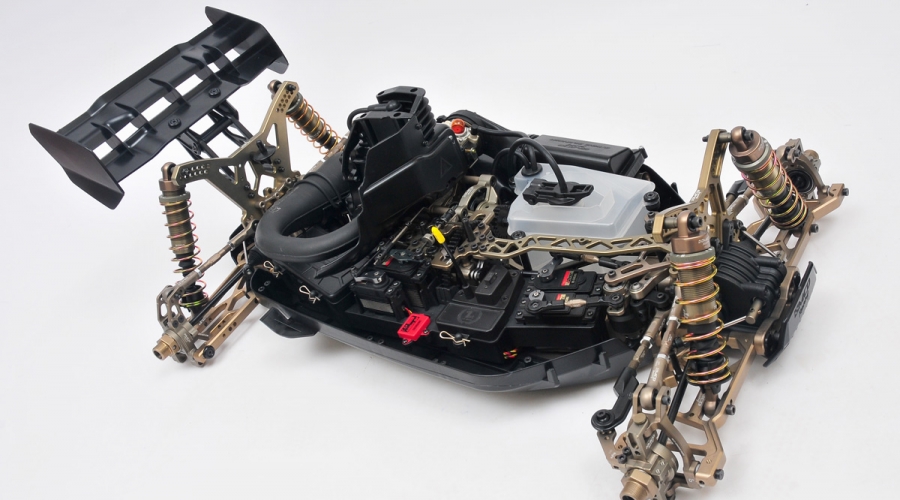

RR5 CF Ultimate
We proudly present our top of the line Racing Spec Buggy the RR5 CF Ultimate. The new RR5 CF Ultimate carries all of the alloy upgrade parts that are developed by the MCD Racing Engineering Department. The parts were used and tested by MCD Racing Team Drivers during many races including the Euro Championships.

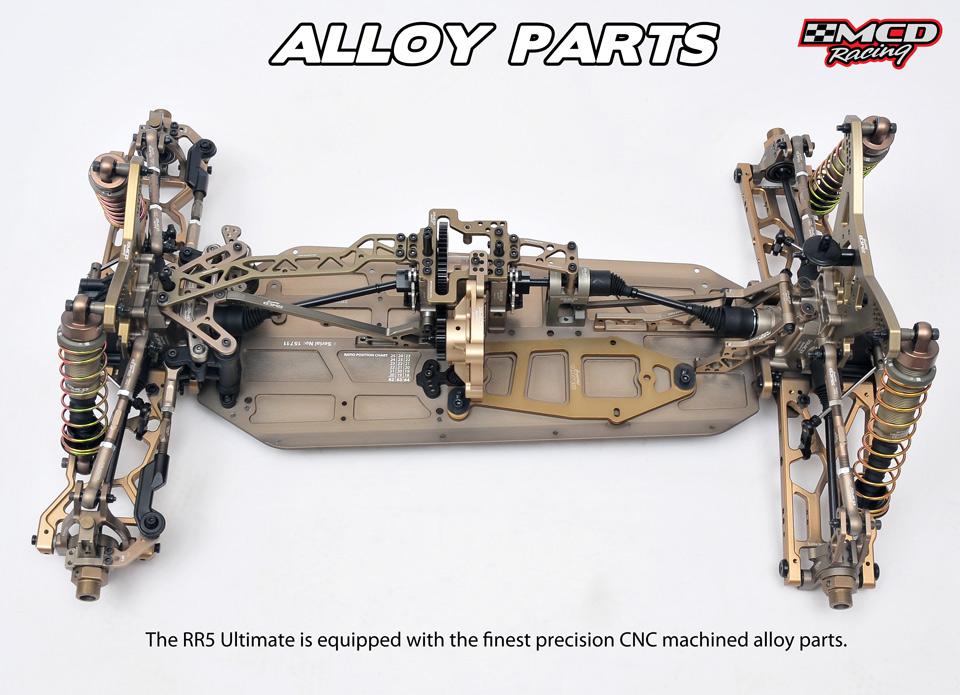

All of the alloy upgrade parts are CNC-machined from 7075 billet Alloy and they are lighter than the composite versions. The alloy parts are hard coated in MCD gun metal color with laser engraved markings.
Order code: 00514001 RR5 Ultimate (Rolling Chassis)
Recommended Retail Price: 3,149 EUR
|
 |
 |
- Top of the line competition off-road Buggy

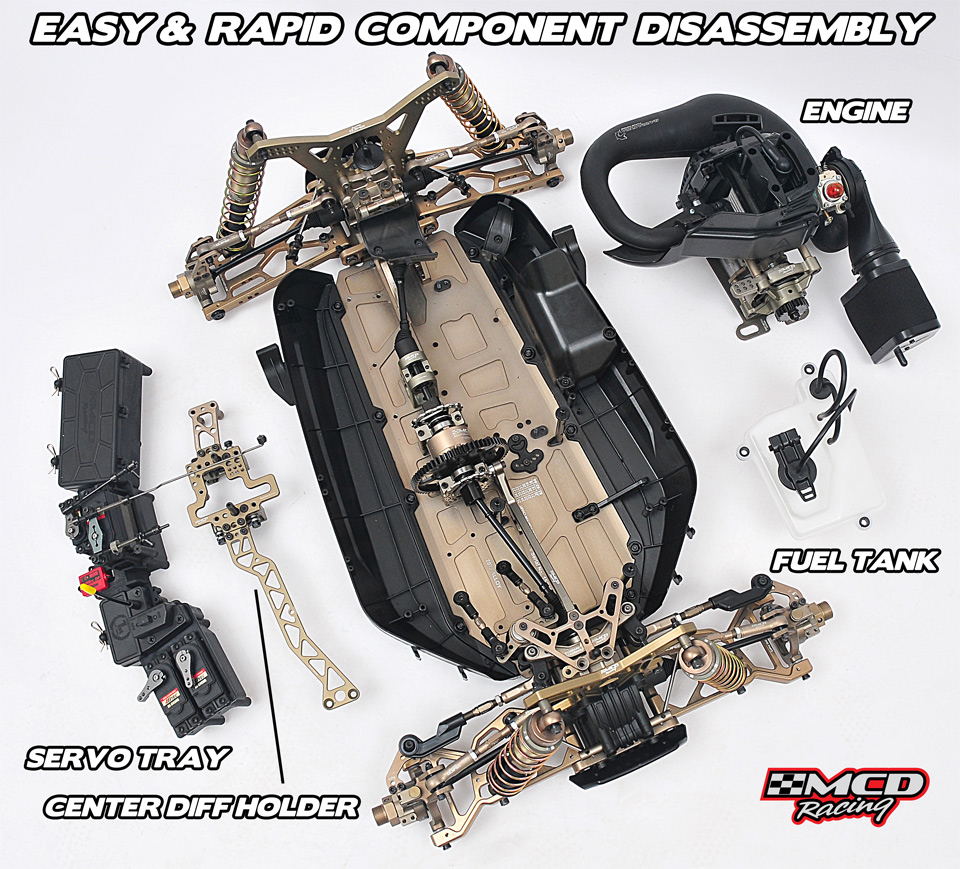

- Easy assembly/dis-assembly
- Easy maintenance

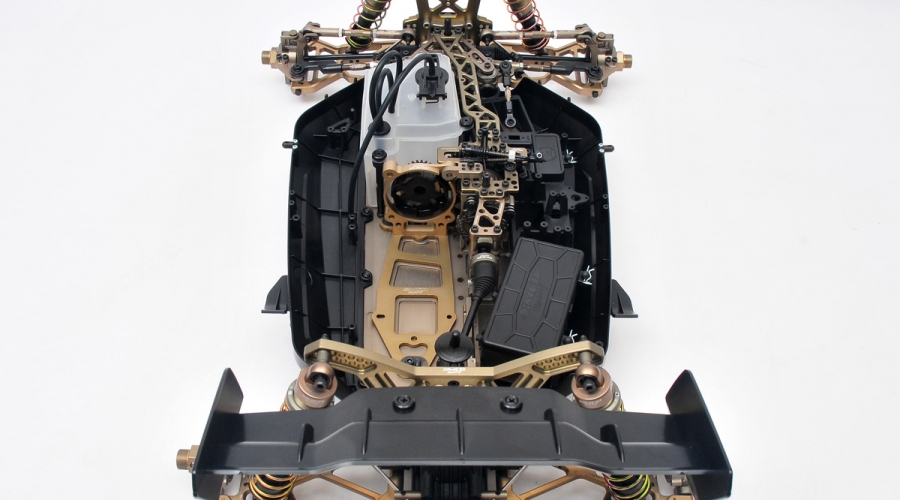

- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms

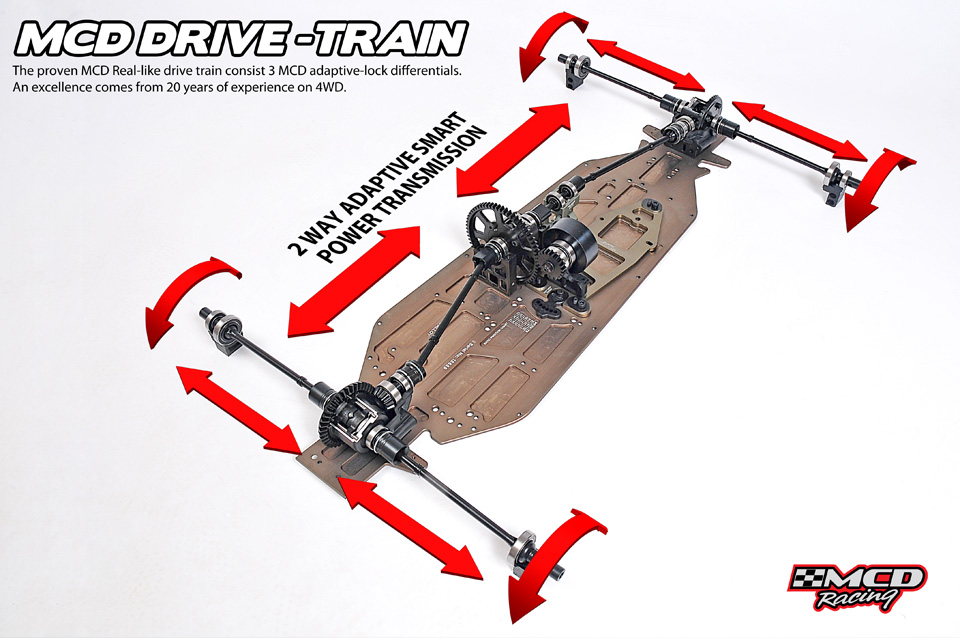

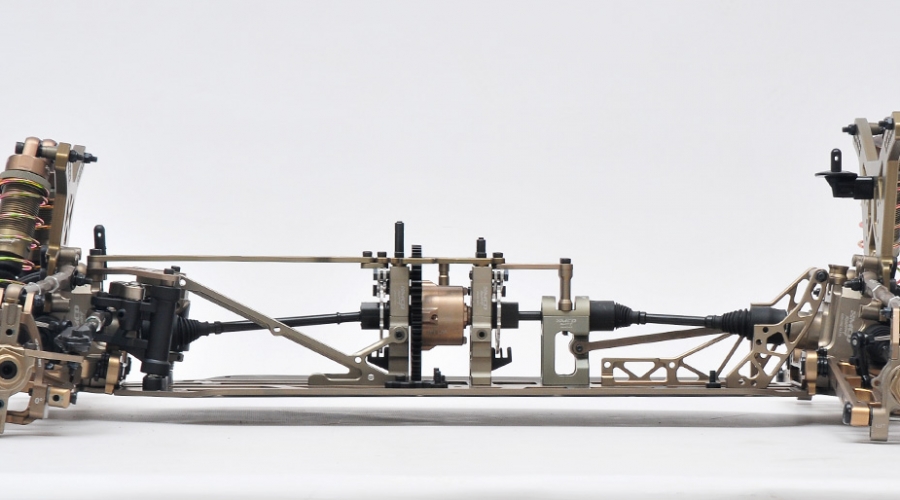

- Sophisticated full-time 4WD Shaft Driven mechanics

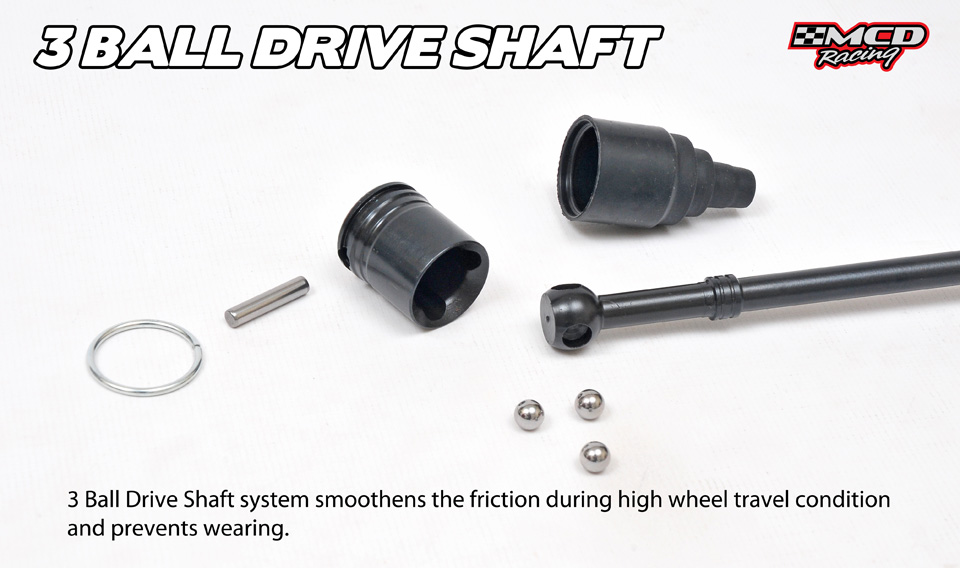

- Ultra strengthened chrome drive shaft and axle
- Easy gear mesh system

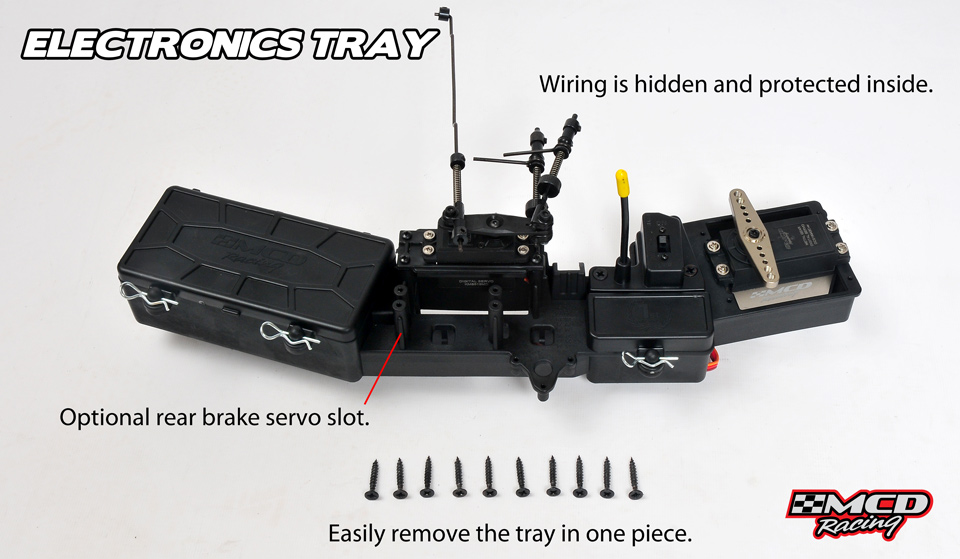

- Easily removable one-piece electronics tray

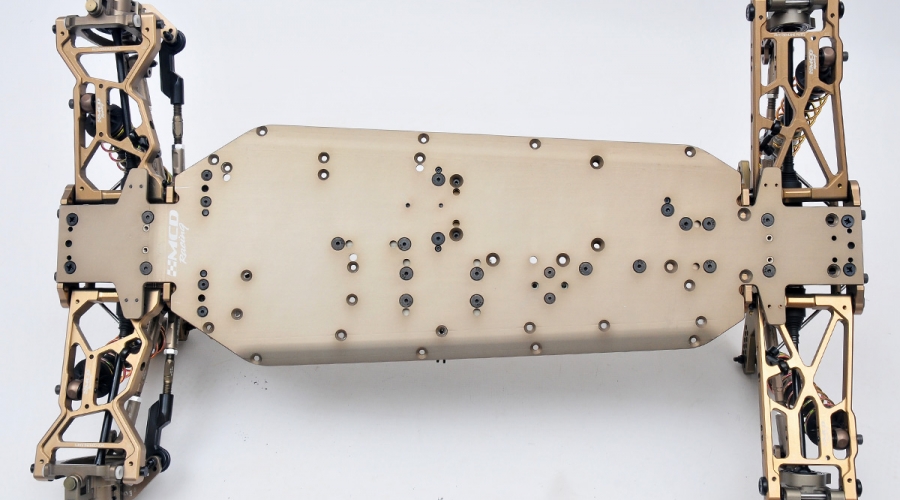

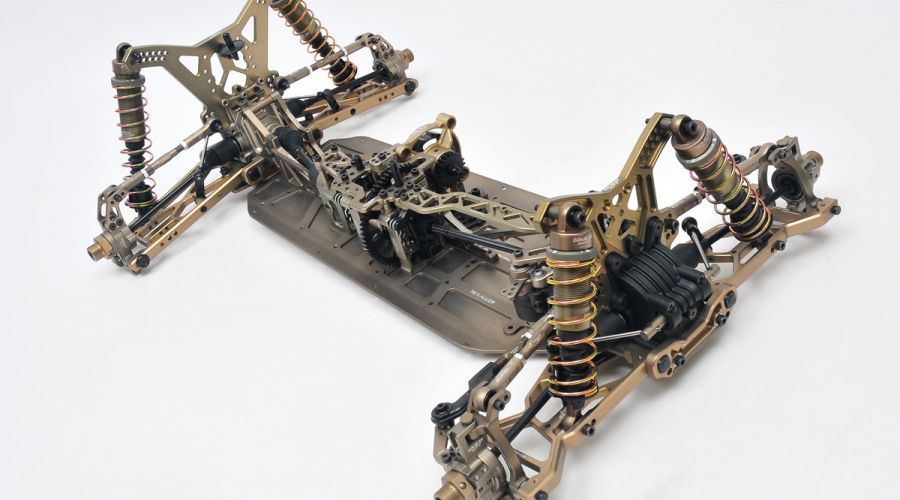

- CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis

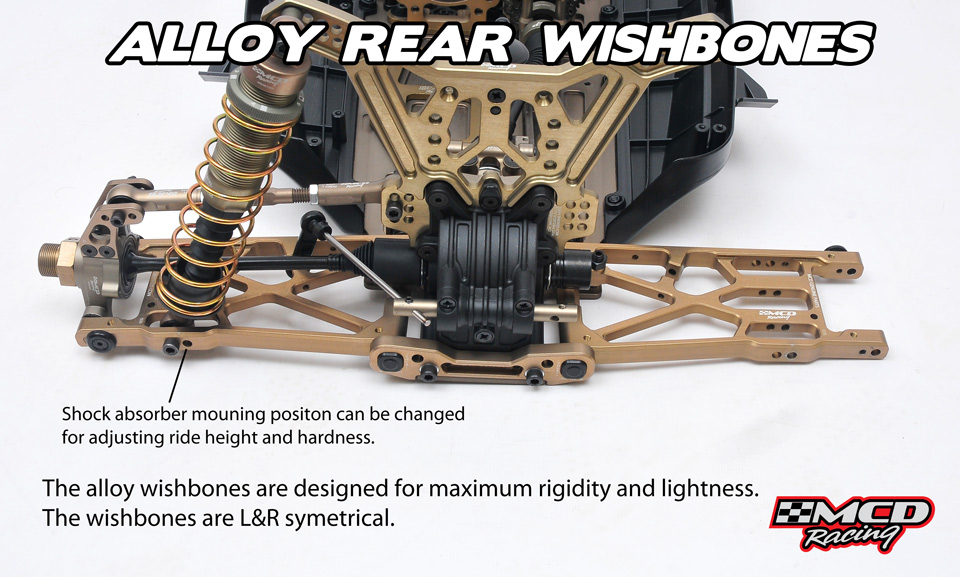

- 7075 air craft alloy wishbones
- Solid and durable side guards

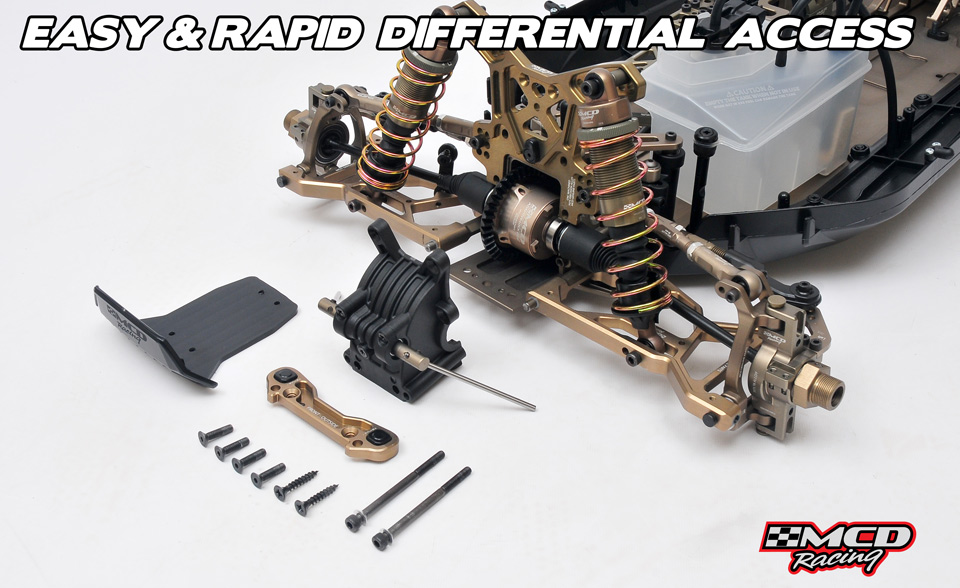

- Easily removable composite front, rear and center diff houses

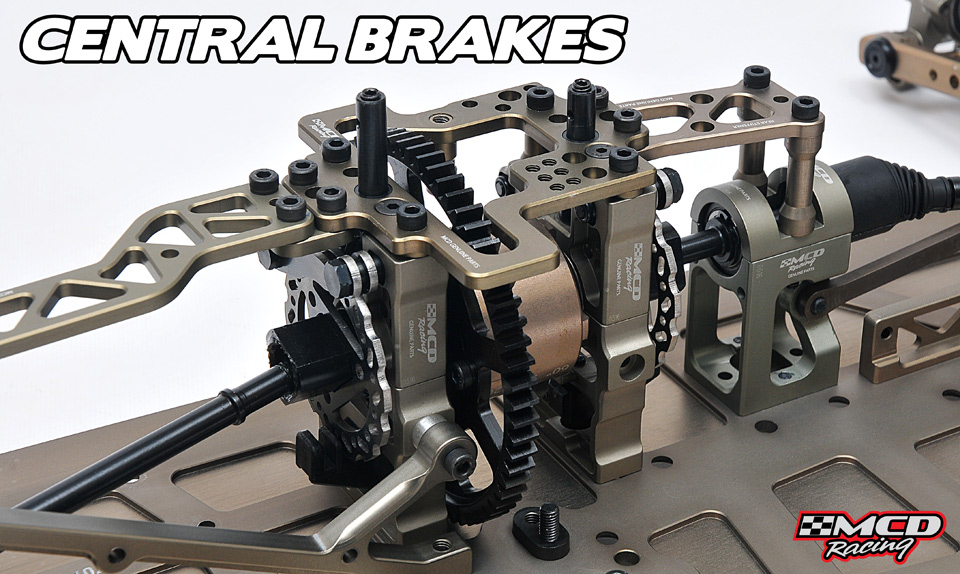

- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot

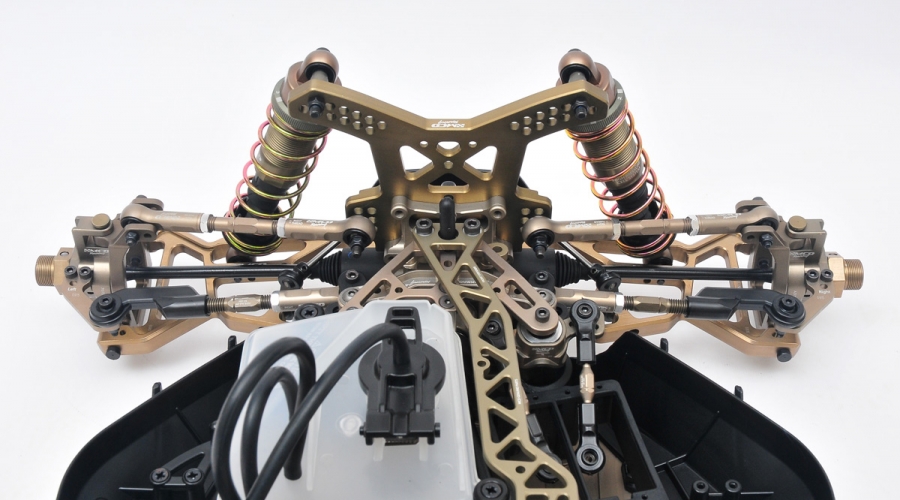

- 8mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes

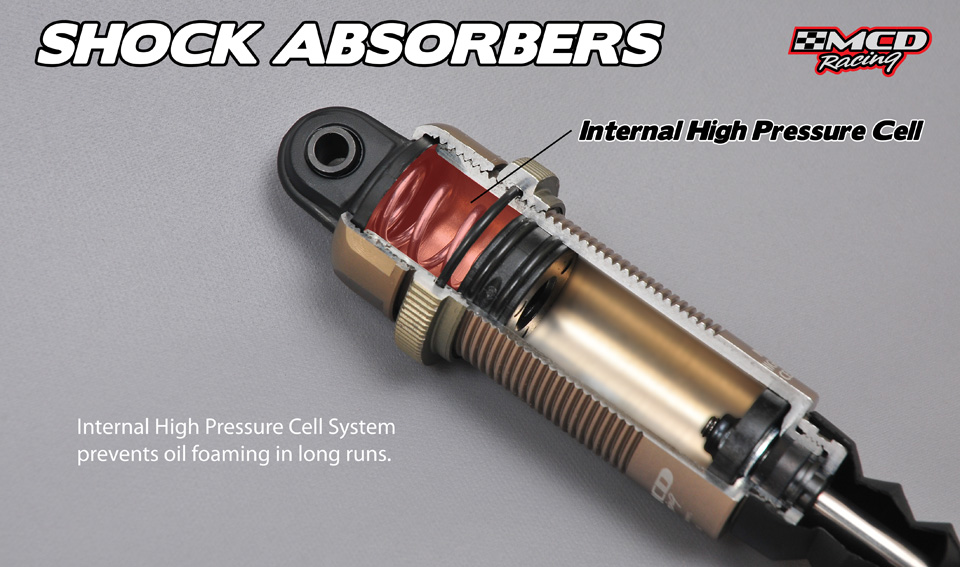

- Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
- Ultra hardened steel transmission gears

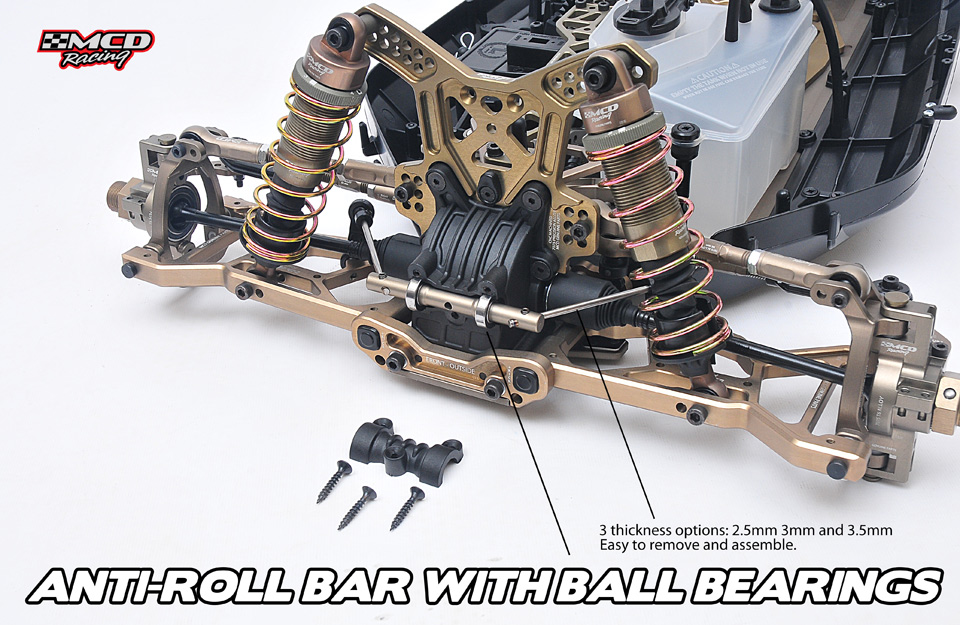

- Double ball bearing anti-roll bars
- No-Stress-Effect polyamide front and rear bumper
- Ultra durable steel ball cup-joints
- Super-Cooling V5 air ventilation system

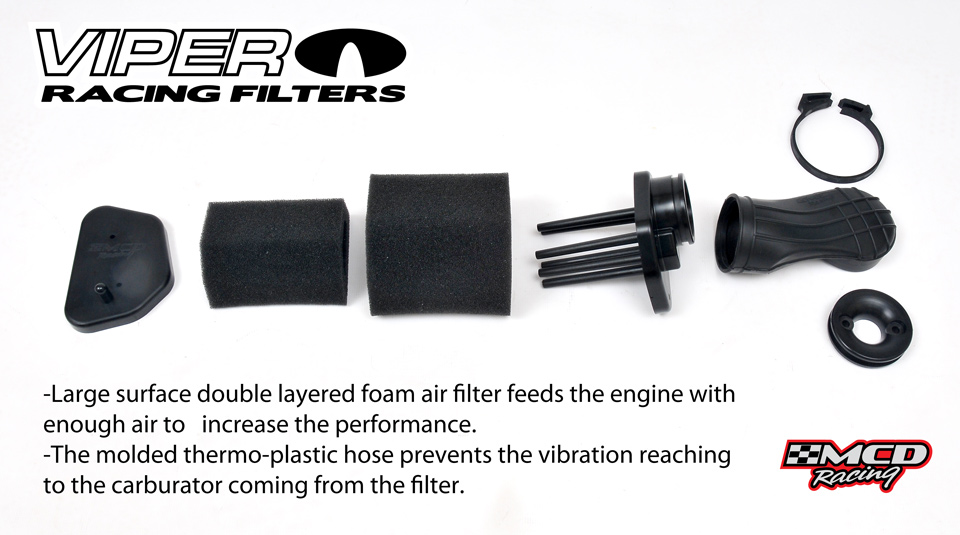

- Viper Racing Air Filters with dual layer foam and thermoplastic hose

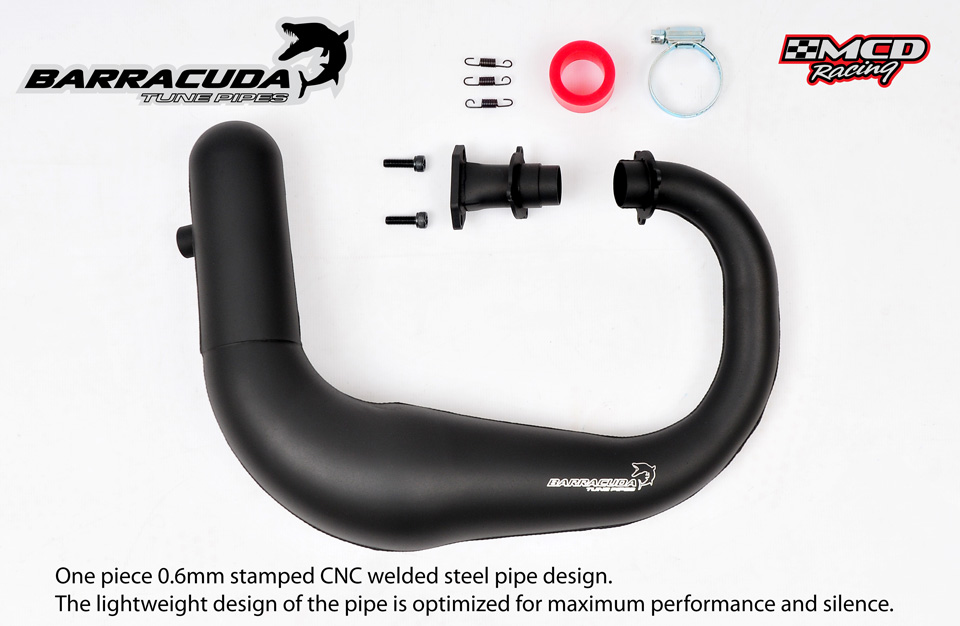

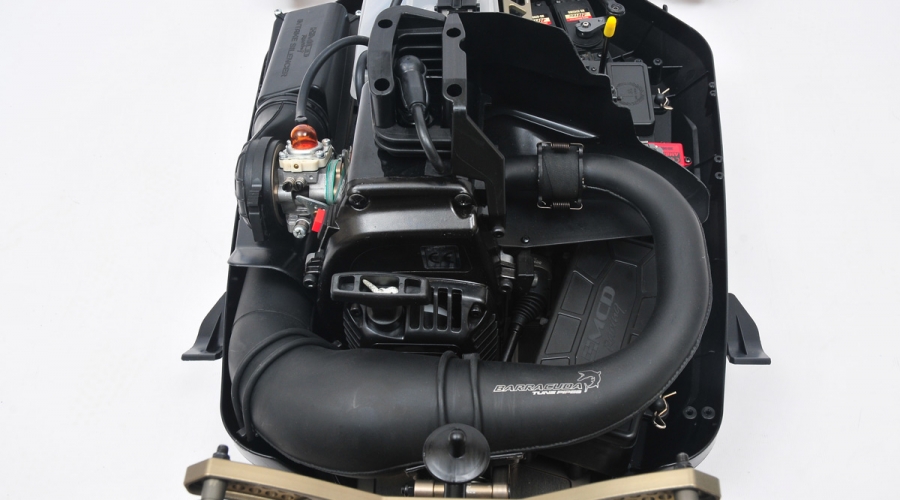

- Barracuda G performance exhaust
- Adjustable CG
- Adjustable weight distribution

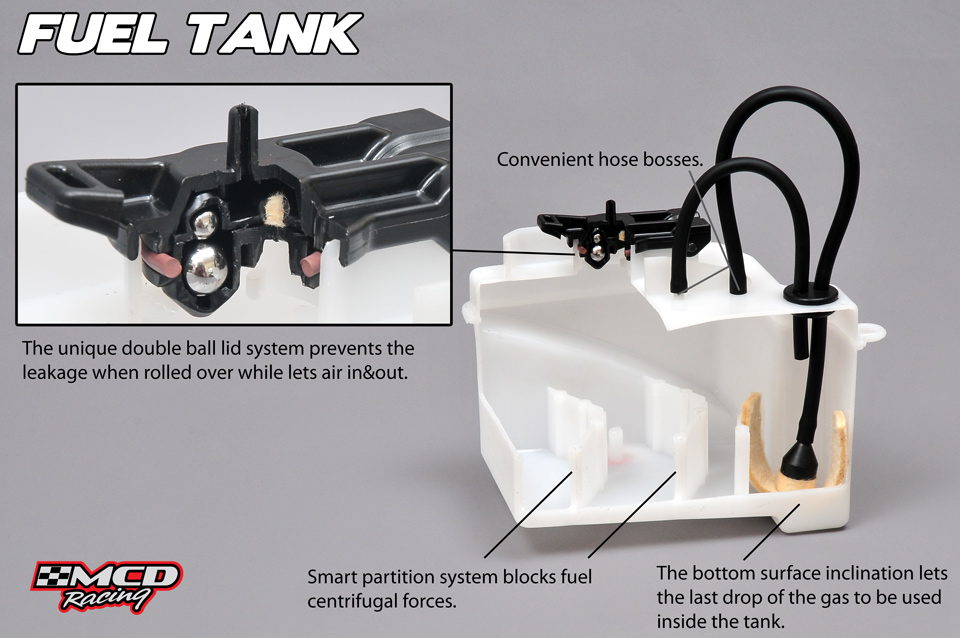

- Molded fuel tank with shake absorbing separators

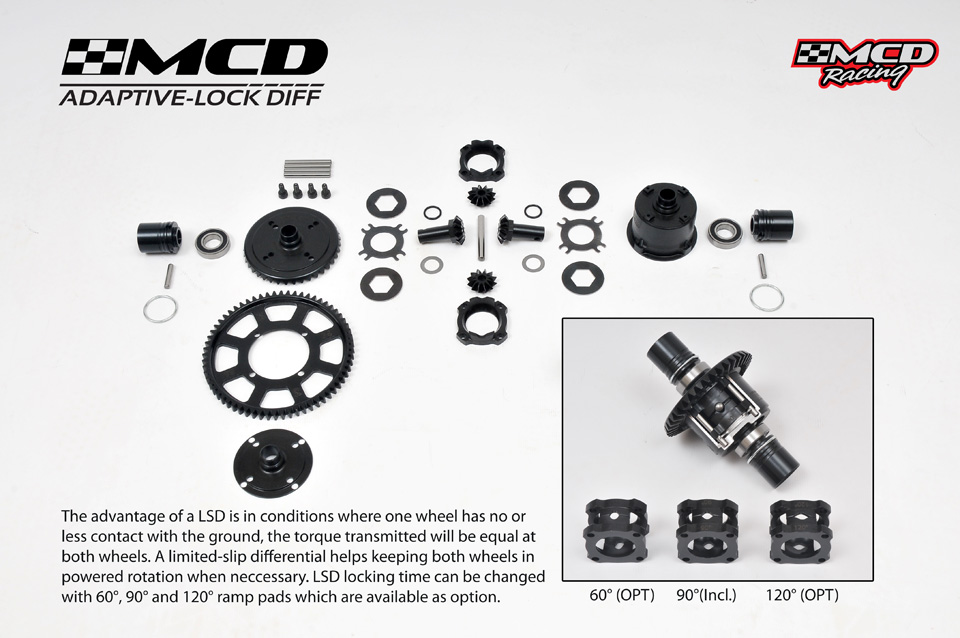

- Front/rear/central 90˚ ramp self locking diffs
- Fully composite body accessories
- Drive and shock shaft boots
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
 |
| Length |
: 800 mm |
| Width |
: 475-480 mm |
| Overall height |
: 340 mm |
| Ground clearance |
: 25-85 mm |
| Weight |
: 12.8-13kg (Depending on the installed components) |
| Wheelbase |
: 549-620 mm (adjustable) |
| Trackwidth |
: 410mm
|
| Chassis material |
: 7075 Anodized Alloy (4mm) |
| Suspension |
: Non-parallel non-line independent |

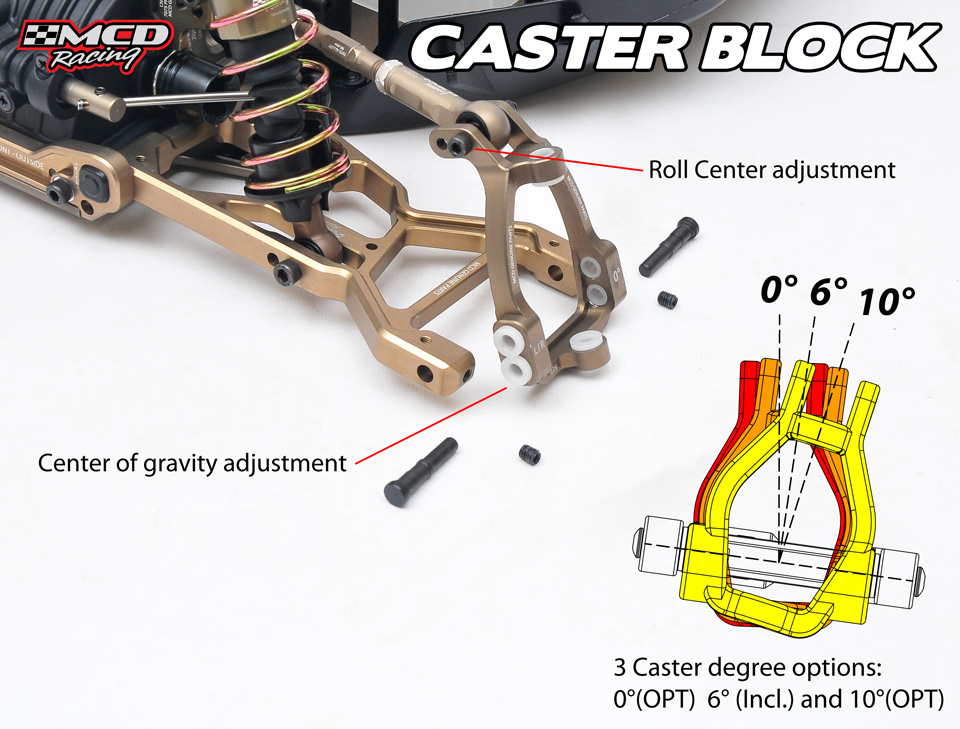

| Caster angle |
: 8°(6° - 14° adjustable) |
| Camber angle |
: Adjustable |

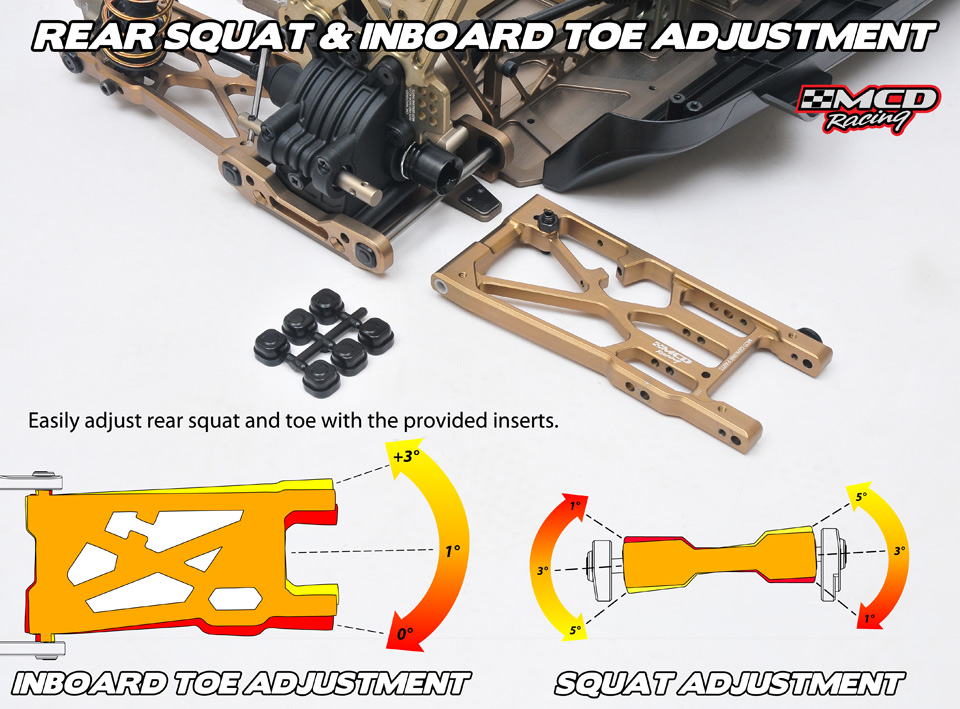

| Toe angle |
: In-board and out-board adjustable |
| Anti-squat |
: 3° |
| Rear-squat |
: 5° |
| Kick-up |
: 8°-10°(adjustable) |
| Shock absorber |
: Coil-over Oil-filled Internal High Pressure Cell |
| Transmission |
: Full-Time 4WD Shaft driven |
| Gear ratio |
: 9.14:1 (18 available 7,44:1 to 10,67:1) |
| Tyre size |

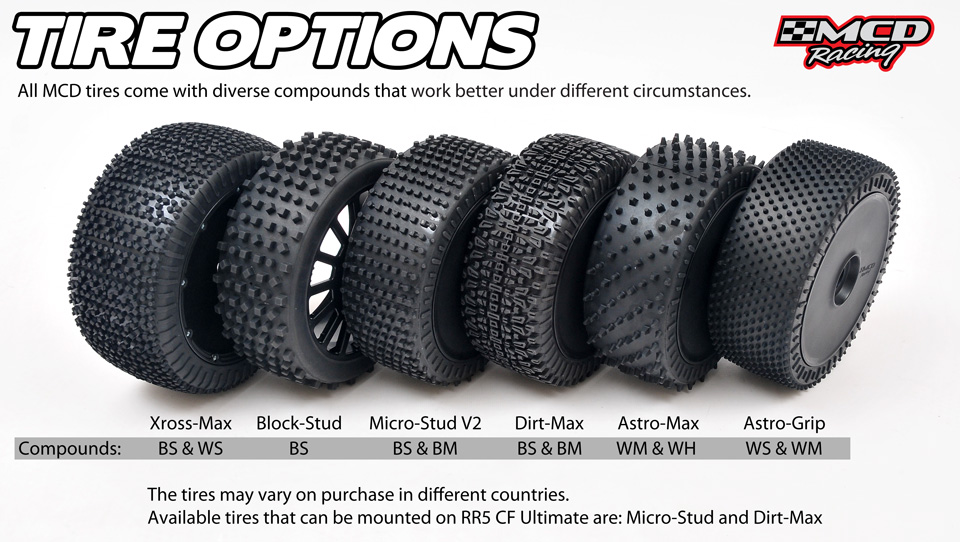

: 68 x 180 mm (Micro-Stud Ultra Grip Compund) |
|
Order code: 00514001 RR5 Ultimate (Rolling Chassis)
Recommended Retail Price: 3,149 EUR
Included upgrade parts:
200402A LSD Diff. Case Alloy
260102S Brake Disc LightWeight ABS
290101X Pro-Bite Racing Clutch
300107X F/R Wishbone Alloy Set Complete

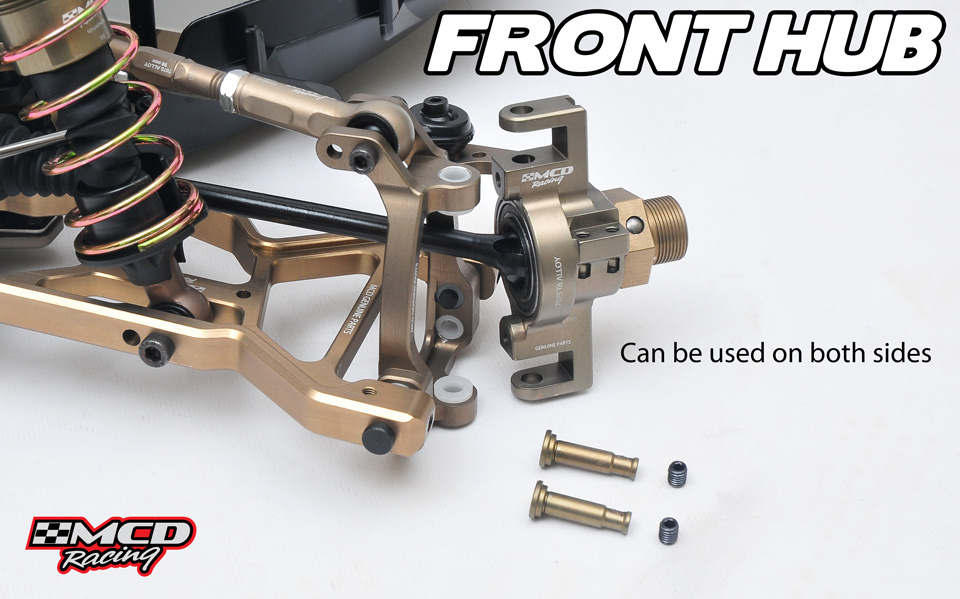

300603A Front Hub Alloy Set L/R

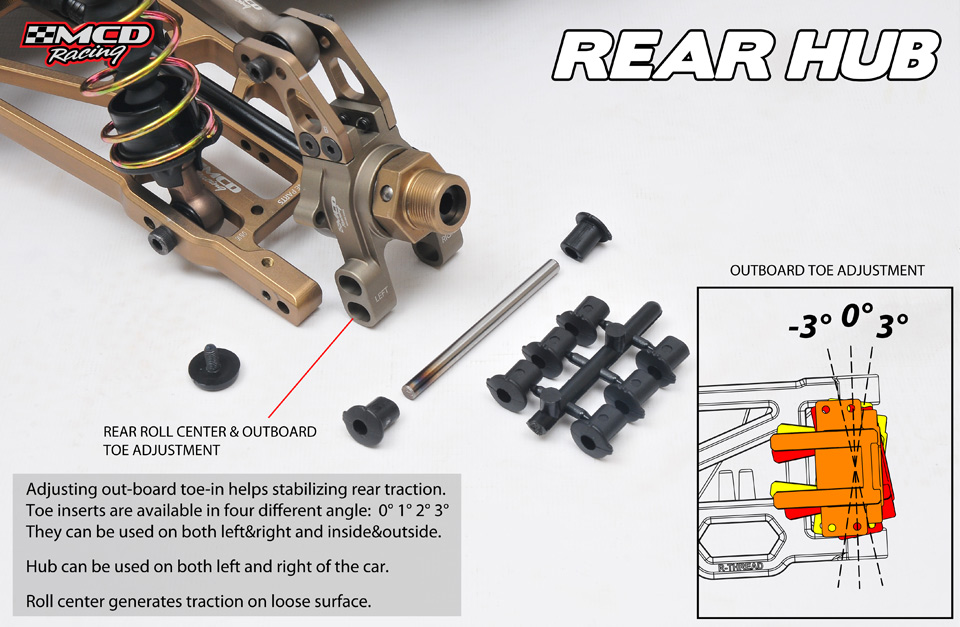

300604A Rear Hub Alloy Set L/R
300704A L/R Caster Block Set 0 Deg.Alloy
301204X Rod-end Lightweight Turnbuckle Set Alloy
320302A Rear Shock Absorber Body Alloy
320402A Front Shock Absorber Body Alloy
320502A Upper Shock Absorber Joint Cup Alloy
320503A Lower Shock Absorber M5 Joint Alloy
340102A Alloy M8 Upper Wishbone Rose Joint L/R Thread
380102A Servo Saver Alloy Upper Arm
381002A Steering Servo Turnbuckle Alloy
415102A Front/Rear Diff. House Inner Alloy
415202A Center Diff.Holder Set Alloy
415302A Brake Plate Alloy
415402A Lay Shaft Carrier Alloy Set
415502A Clutch Bell Carrier Alloy
415701A Engine Clutch House Alloy
430105X F/R Tower Multi-Hole Wide Set Alloy

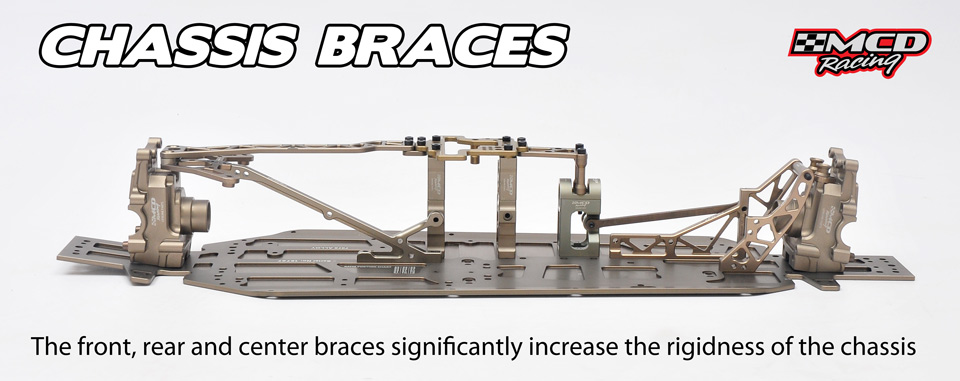

445102A Front Stiffener Alloy
445202A Rear Stiffener Alloy Set
445301A Top Stiffener Alloy
460102A Diff.House-Stiffener Spacer Alloy
725302A Carburetor / AirFilter Venturi Alloy
750601X Barracuda G Performance Exaust Set

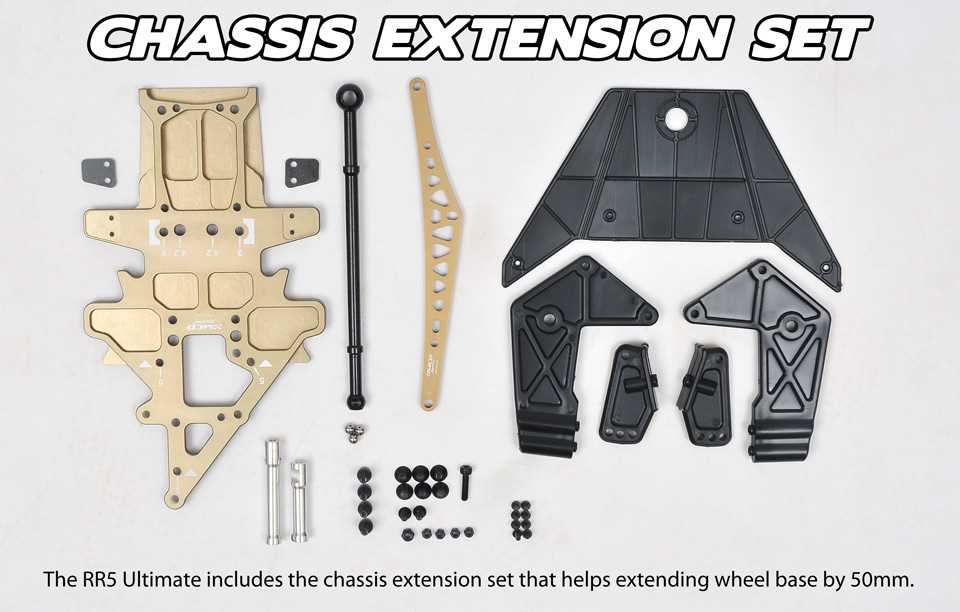

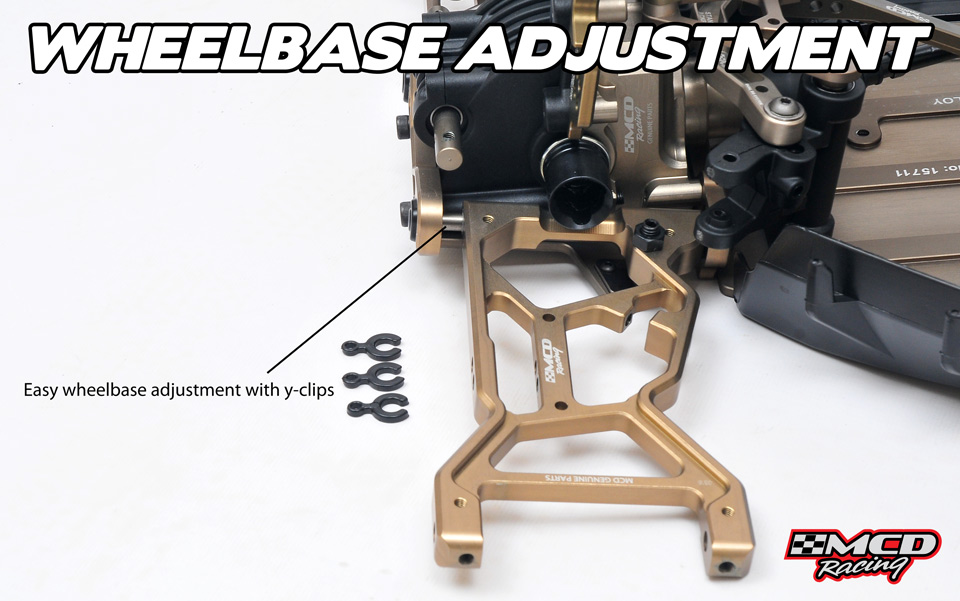

925901X RR5-Max Wheelbase Extender Kit
|
|
 |







|
|

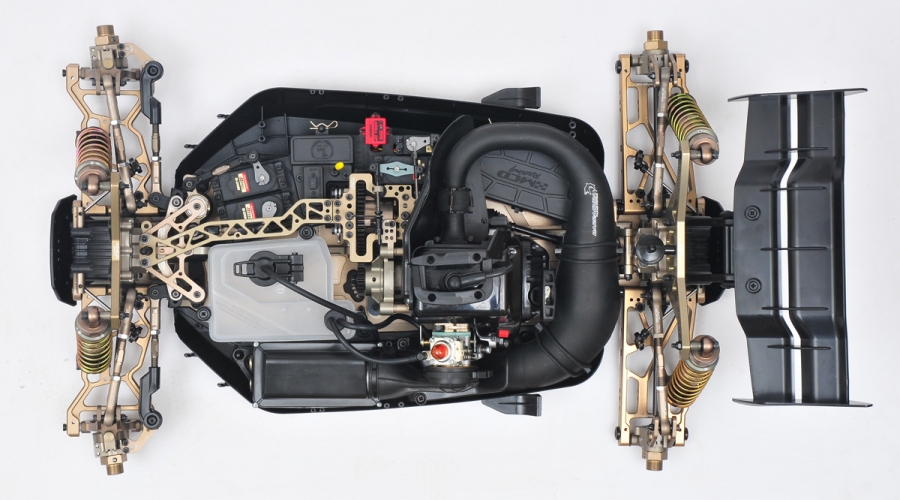

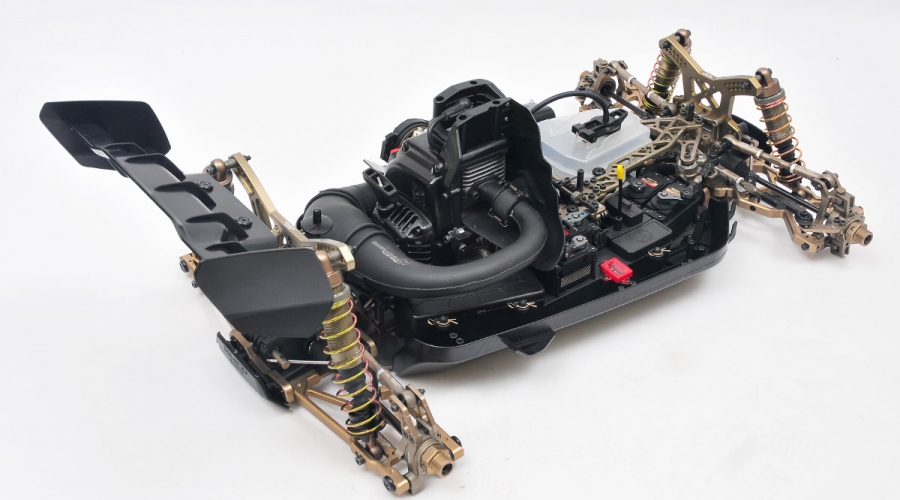

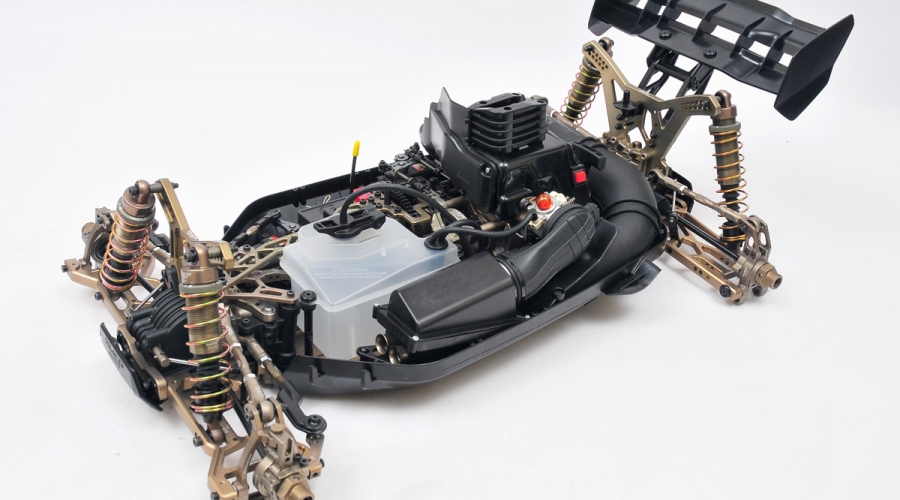

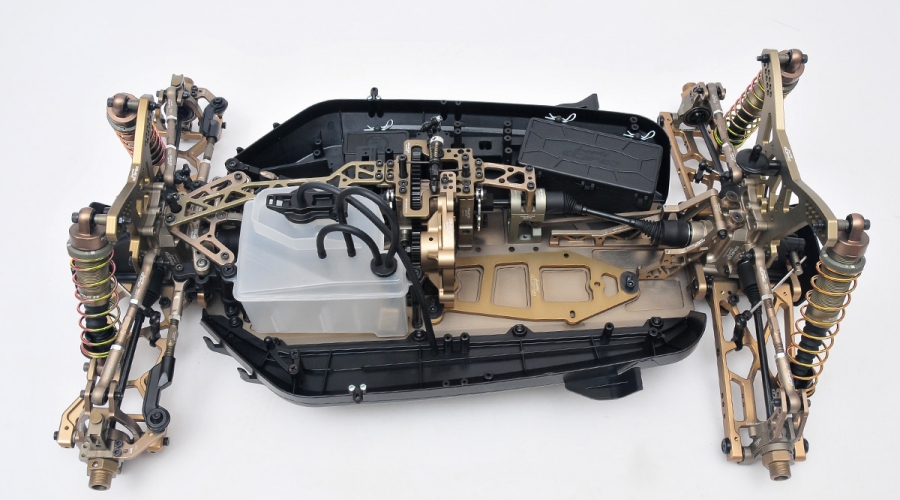

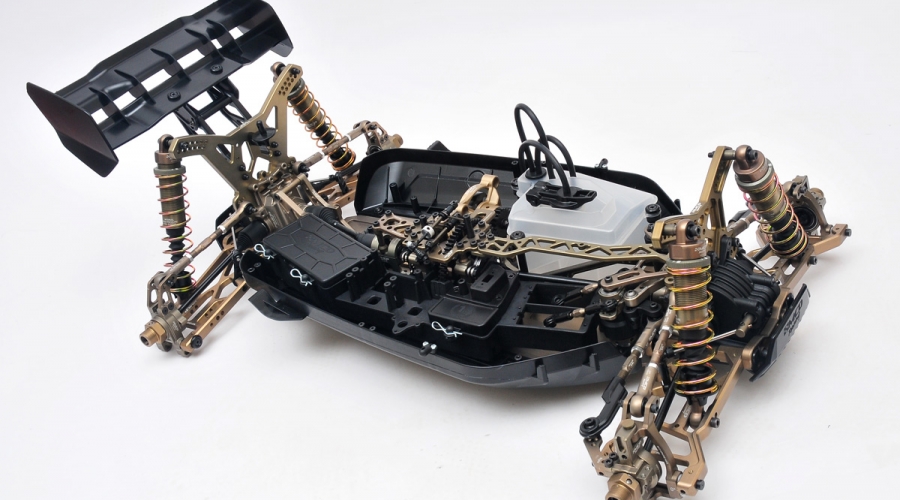

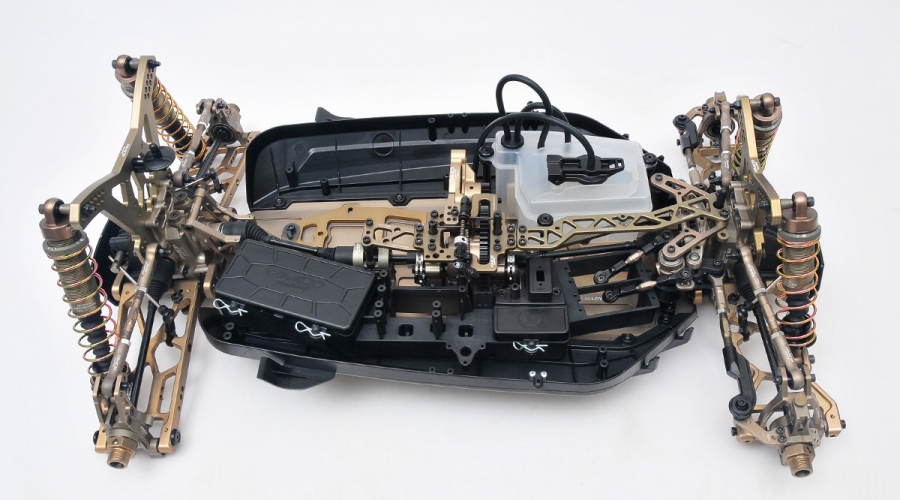

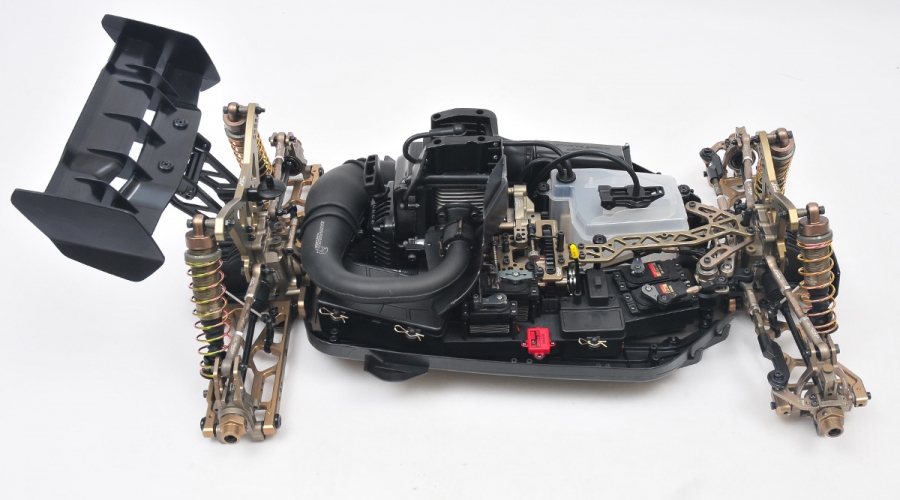

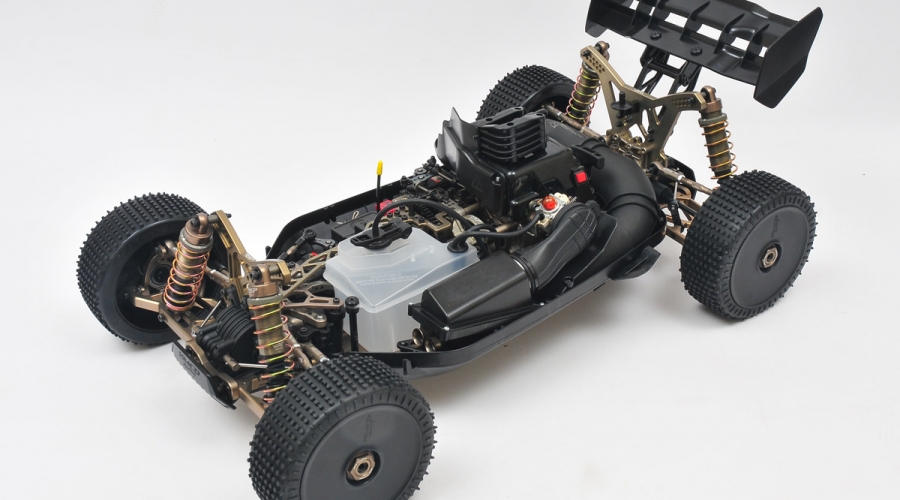

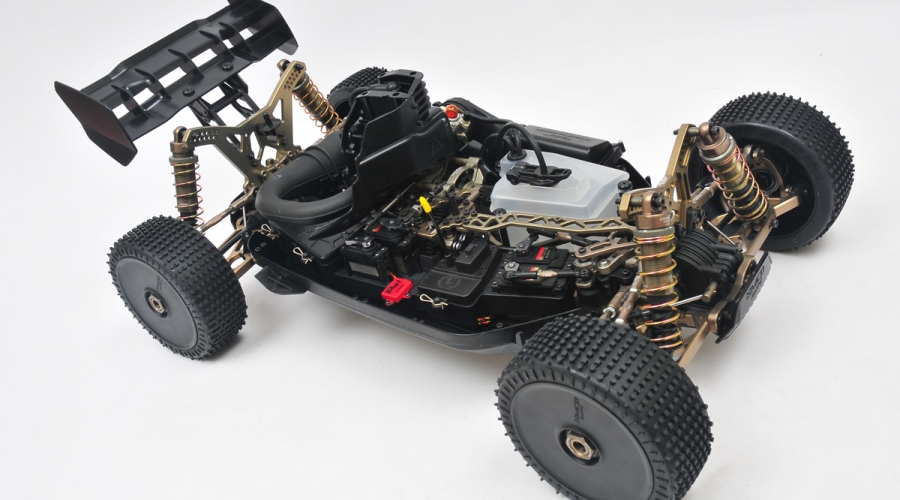

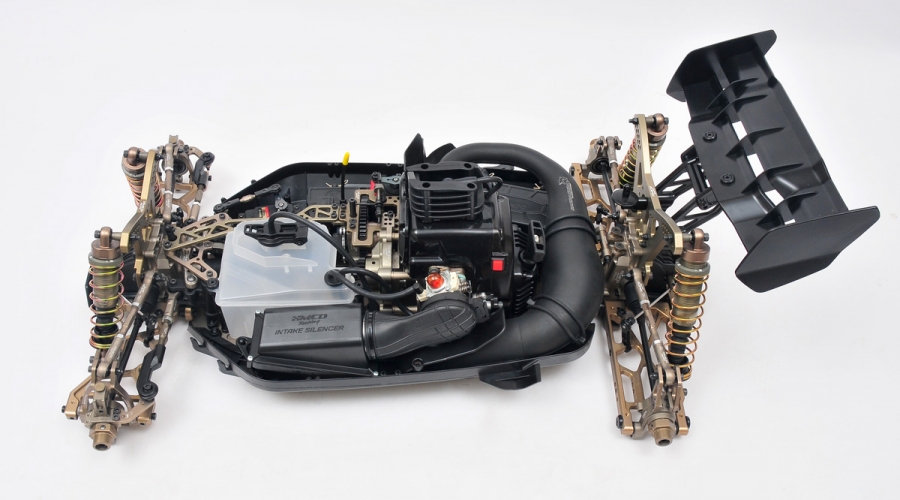

Some parts (engine, exhaust and radio gear) shown on the pictures are for photographing purposes only and not included in the car.

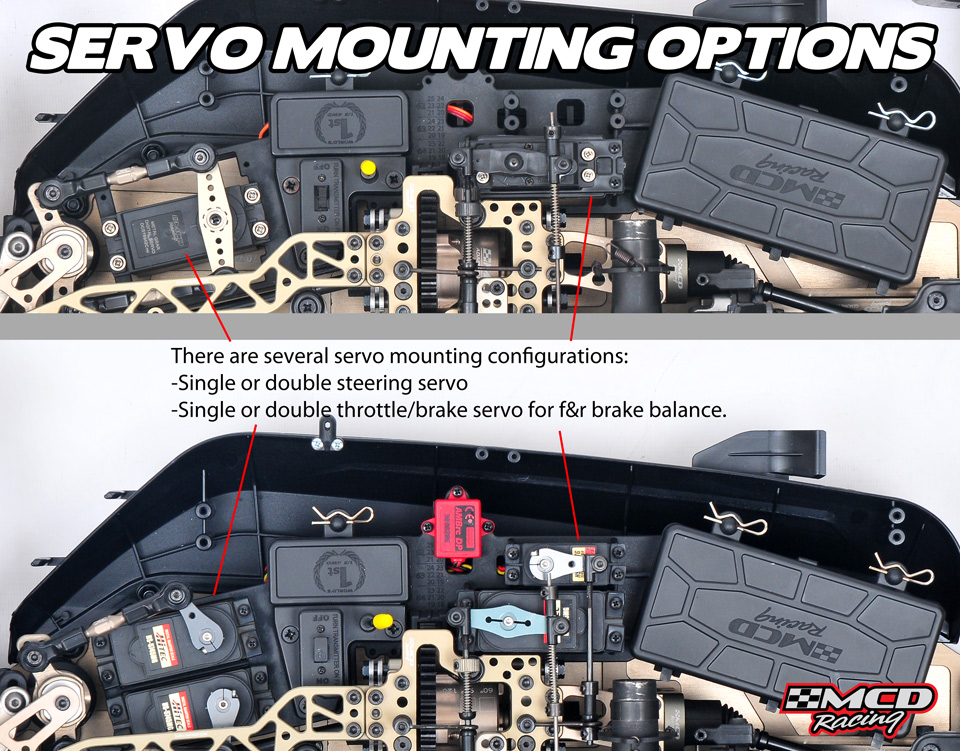

Required for operation (not included): Engine, 2 ch. Radio, 2x steering servos, 1 throttle/break servos

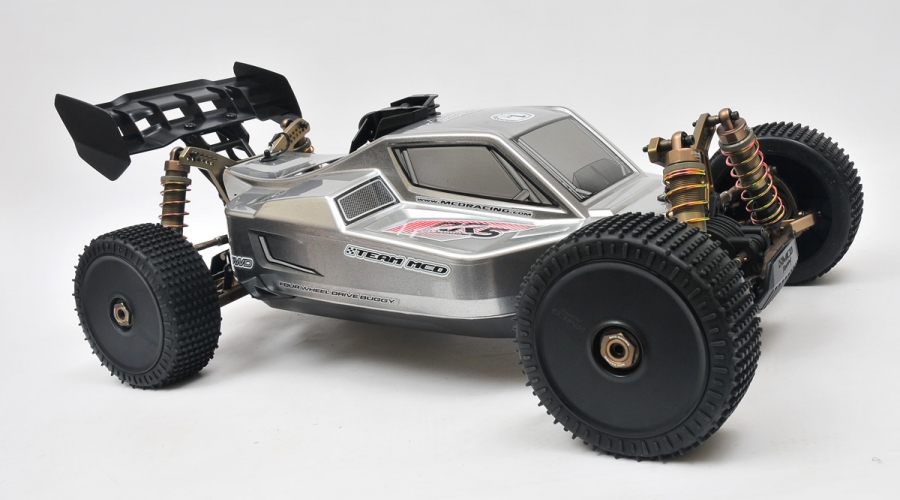

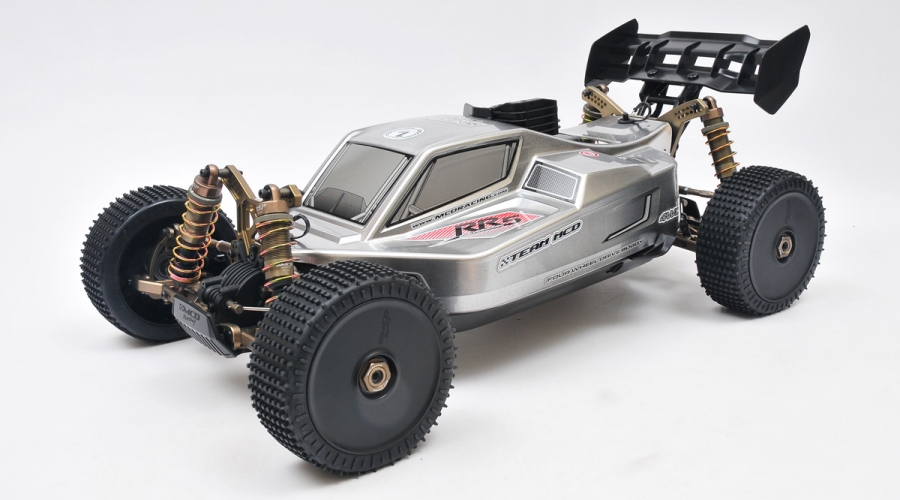

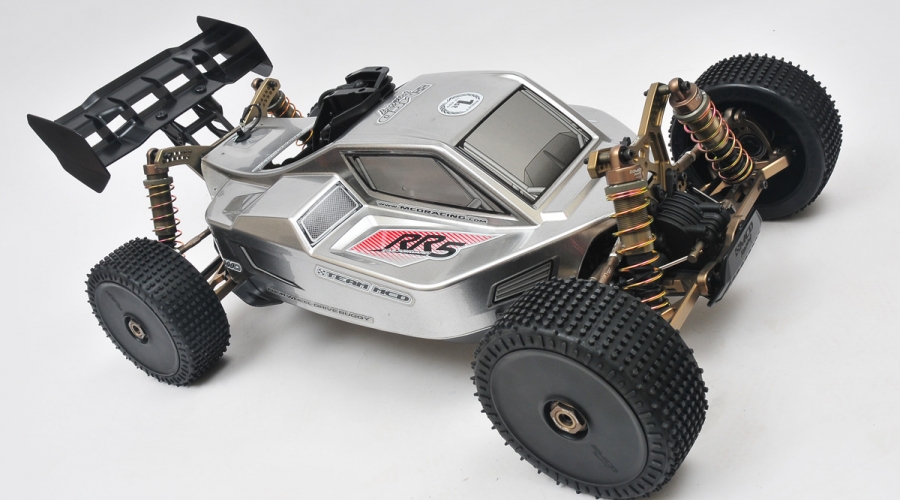

Cars come with a basic decal set, they may differ from the images on this page. |
|
 |
|
